| Technical Data |
|
| Based on standard |
EN 61984 |
| Approval |
c CSA us (OL) |
| Product weight |
58.7 |
| Electrical connection 1 |

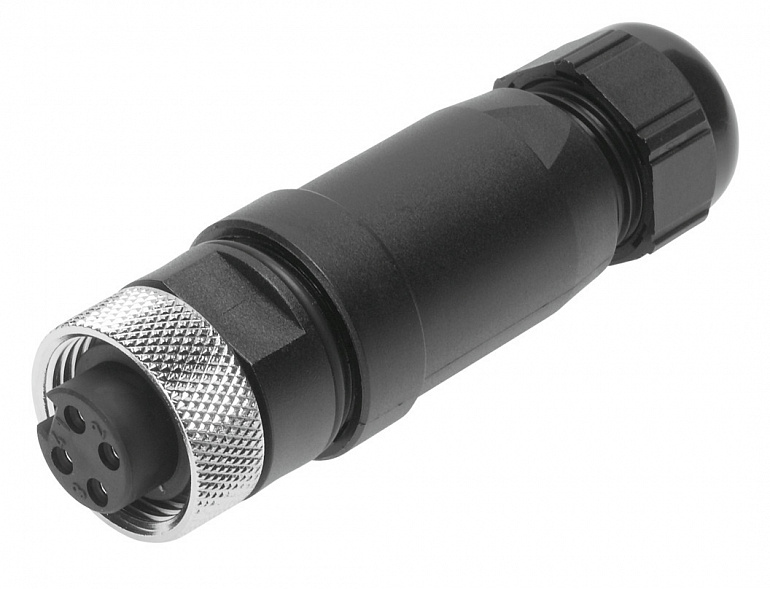

Straight socket, 7/8", 4-pin |
| Plug encoding |
ODVA AutoSIG |
| Electrical connection 2 |
Screw terminal |
| Operational voltage range DC |
0250 |
| Operational voltage range AC |
0250 |
| Current rating at 40° C |
10 |
| Immunity to surge |
2.5 |
| Permissible cable diameter |
612 |
| Connection cross section |
1.5 |
| Degree of protection |
IP67 |
| Ambient temperature |
-2580 |
| CE mark (see declaration of conformity) |
To EU Low Voltage Directive |
| UKCA marking (see declaration of conformity) |
To UK regulations for electrical equipment |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Note on materials |
RoHS-compliant |
| Pollution degree |
3 |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| Material housing |
PA |
| Housing colour |
Black |
| Material union nut |
Nickel-plated die-cast zinc |
| Material seals |
FPMNBR |
| Material electrical contact |
Gold-plated copper alloy |
