| Technical Data |
|
| Based on standard |
EN 61076-2-101EN 61984 |
| Approval |
c UL us - Recognized (OL) |
| Frequency of connection |
3 |
| Product weight |
17.5 |
| Electrical connection |

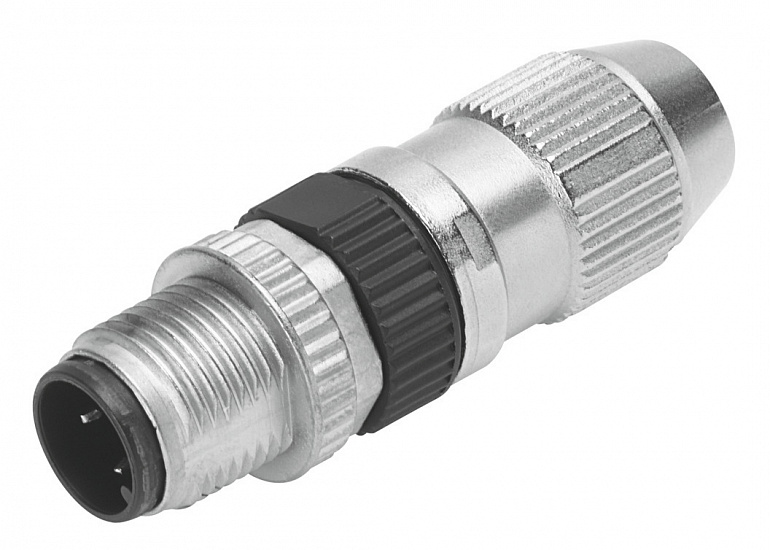

3-pinA-codedM12x1Straight plug/insulation displacement connector |
| Operational voltage range DC |
032 |
| Operational voltage range AC |
032 |
| Current rating at 40° C |
4 |
| Immunity to surge |
0.8 |
| Permissible cable diameter |
2.95.1 |
| Individual wire diameter |
0.1 |
| Wire diameter |
0.91.6 |
| Connection cross section |
0.140.34 |
| Degree of protection |
IP65IP67 |
| Ambient temperature |
-2585 |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Note on materials |
RoHS-compliant |
| Pollution degree |
3 |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| Material housing |
PADie-cast zincNickel-plated |
| Material screw-type lock |
Die-cast zinc, nickel-plated |
| Material seals |
FPMPUR |
| Material electrical contact |
Bronze |
| Permissible insulating sheath |
PPPVCTPE-E |
