SKU: 570922
GTIN: 4052568058661
Характеристики

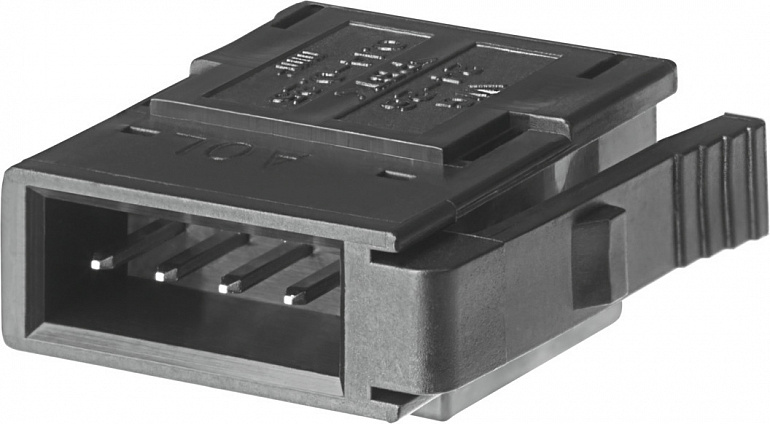

| Electrical connection | 4-pin, Straight plug/insulation displacement connector, Square design |
| Connection cross section | 0.14 |
| Degree of protection | IP40 |
Все характеристики
| Technical Data | |
| Approval | c UL us - Recognized (OL) |
| Frequency of connection | 1 |
| Type of mounting | Snapping in |
| Electrical connection | 4-pinStraight plug/insulation displacement connectorSquare design |
| Operational voltage range DC | 030 |
| Current rating at 40° C | 3 |
| Immunity to surge | 0.8 |
| Individual wire diameter | 0.07 |
| Wire diameter | 0.81 |
| Connection cross section | 0.14 |
| Degree of protection | IP40 |
| Ambient temperature | -2060 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant |
| Pollution degree | 2 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Material housing | PBTPC |
| Material electrical contact | Bronze |
| Permissible insulating sheath | PPPVCTPE-E |
Приемущества
| Power supply socket for fieldbus connection |
| NECU-HX: reconnectable M8 and M12 round plug connector with Harax® quick connection technology for low-voltage applications |
| Plug and socket for power supply |
| Can be assembled with any cable lengths |
Документы
| NECU_EN.PDF |
| CPX_P_EN.PDF |
| TYP34_G_EN.PDF |
| Datasheet |
