| Technical Data |
|
| Based on standard |
EN 61076-2-101EN 61984 |
| Product weight |
44.3 |
| Electrical connection 1 |

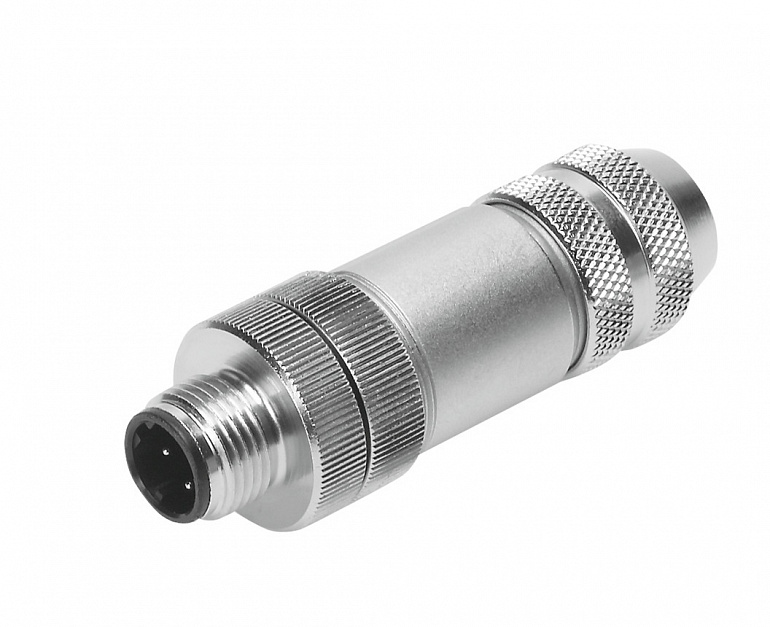

Straight plug connector, M12x1, 4-pin, D-coded, screenable |
| Plug encoding |
D |
| Electrical connection 2 |
Screw terminal, can be screened |
| Operational voltage range DC |
0250 |
| Operational voltage range AC |
0250 |
| Immunity to surge |
2.5 |
| Transmission characteristics |
DIN EN 50173/CAT 5 |
| Permissible cable diameter |
68 |
| Connection cross section |
0.140.75 |
| Degree of protection |
IP67 |
| Ambient temperature |
-2585 |
| CE mark (see declaration of conformity) |
To EU Low Voltage Directive |
| UKCA marking (see declaration of conformity) |
To UK regulations for electrical equipment |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Note on materials |
RoHS-compliant |
| Pollution degree |
3 |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| Material housing |
Die-cast zinc, nickel-plated |
| Material electrical contact |
Gold-plated brass |
