SKU: 8168593
GTIN: 4052568619725
Все характеристики
| Technical Data | |
| Ambient temperature | 1040 |
| Product weight | 155 |
| Degree of protection | IP00 |
| Storage temperature | -2060 |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Fieldbus link | Ethernet |
| Number of digital logic inputs | 9 |
| Number of digital logic outputs 24 V DC | 19 |
| Bus connection | Socket |
| Controller operating mode | Direct operationHomingOpen-loop operation |
| Process interfacing | Drives with positioning function |
| Operating voltage | 20.4 - 30 V DC |
| Nominal voltage for logic power supply DC | 24 |
| Permissible range for logic voltage | ± 10 % |
| Nominal voltage load voltage DC | 24 |
| Permissible range for load power supply | ± 10 % |
| Current rating per output | 4450 |
| Status displays | LED (status) |
| Ethernet, number | 1 |
| Ethernet, supported protocols | TCP/IP |
| USB-interface | USB 2.0 |
| storage medium | microSD |
| Total number of axes | 6 |
| Control methods | TCP/IP |
| Supported kinematic | 3-axis gantries X-Y-Z |
| Baud rate | 10/100 Mbit/s |
| Operational voltage range DC | 20.430 |
| Nominal operating voltage DC | 24 |
| Protocol | EthernetHTTPTCP/IP |
| Ethernet interface | RJ45 (socket, 8-pin) |
| Features of digital logic outputs | ConfigurableNot galvanically isolated |
Приемущества
| 6-axis low-voltage servo drive for stepper motors, open-loop, no encoder inputs |

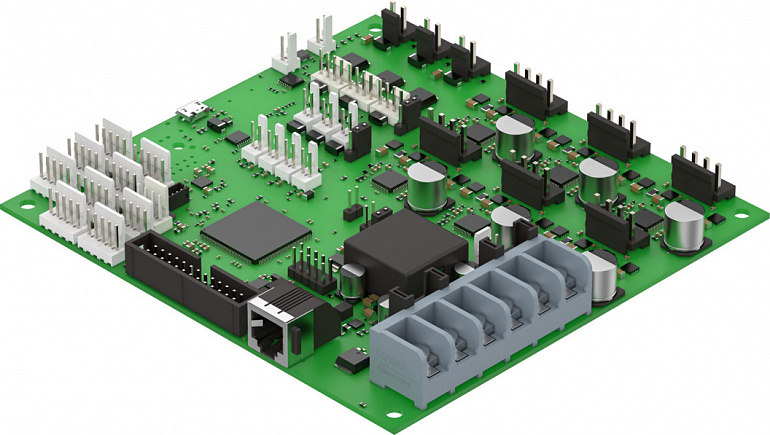

| Open circuit board for integration in desktop devices (without control cabinet) |
| Digital interface Ethernet, USB - positioning via G-code commands |
| Digital inputs for connecting the microswitches for homing |
Документы
| CMXL_EN.PDF |
| Datasheet |
