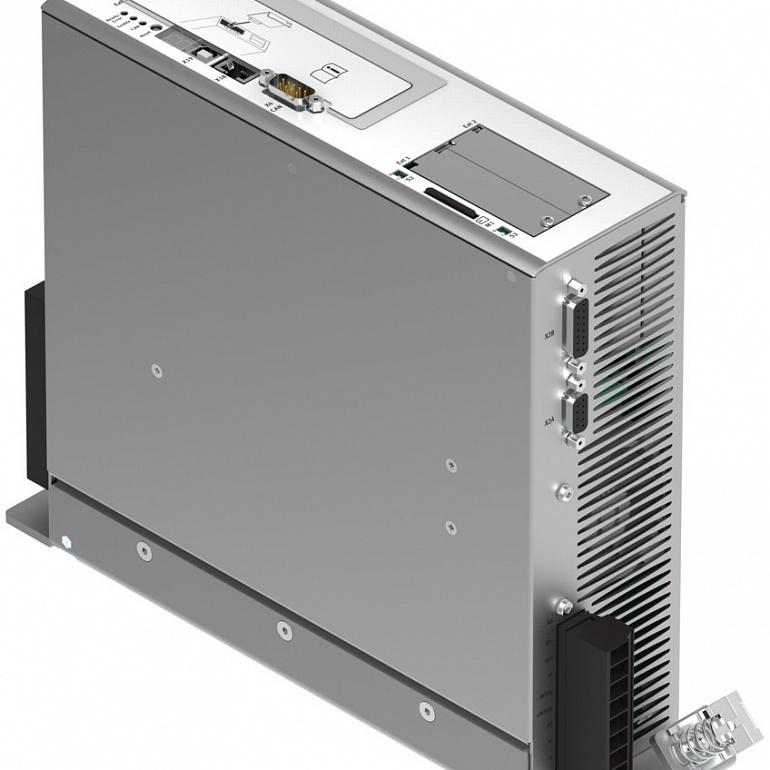

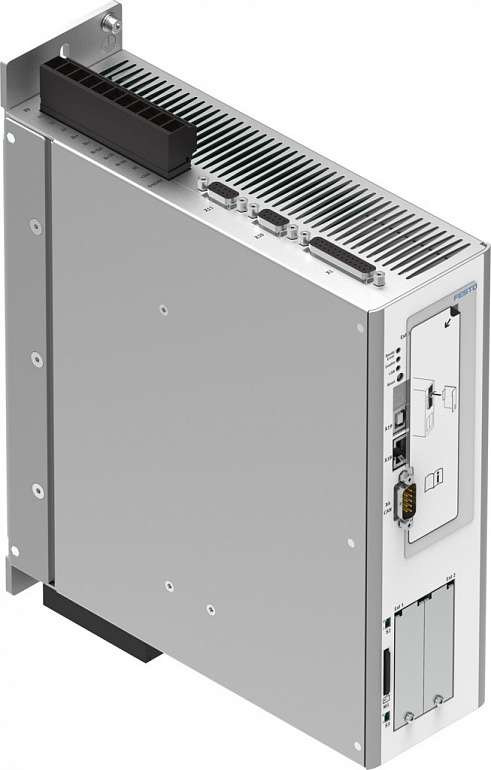

| Technical Data |
|

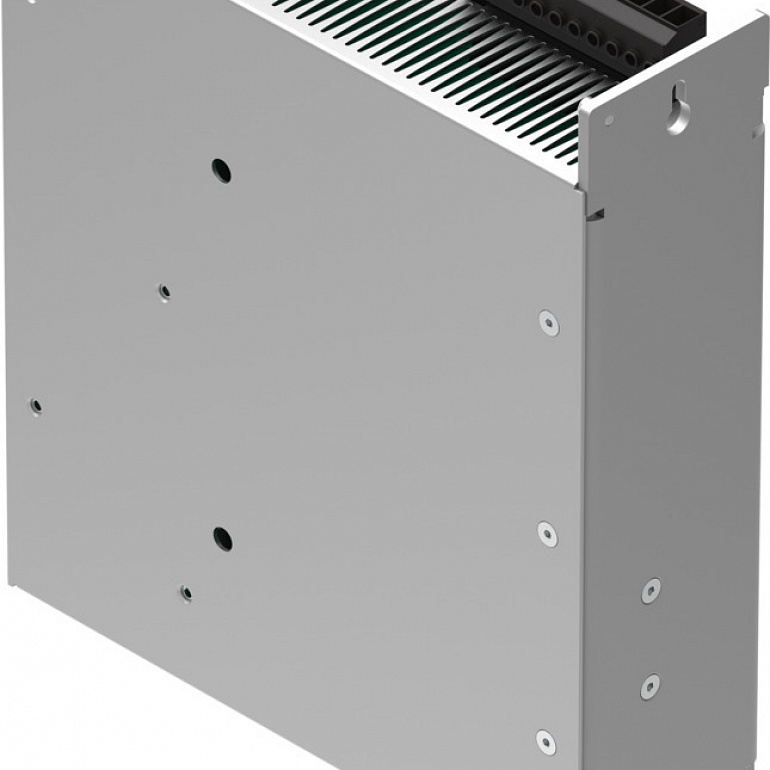

| Type of mounting |
On sub-baseScrew-clamped |
| Product weight |
3450 |
| Display |
7-segment display |
| Approval |
RCM trademarkc UL us listed (OL) |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveTo EC Machinery DirectiveTo EU Low Voltage DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK regulations for machinesTo UK RoHS instructionsTo UK regulations for electrical equipment |
| Storage temperature |
-2570 |
| Ambient temperature |
040 |
| Relative air humidity |
0 - 90% |
| Degree of protection |
IP10IP20 |
| Pollution degree |
2 |
| Note on materials |
RoHS-compliant |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Phases of nominal operating voltage |
3-phase |
| Nominal operating voltage AC |
400 |
| Permissible voltage fluctuations |
+/- 10 % |
| Mains frequency |
5060 |
| Nominal current |
5.5 |
| Mains filter |
Integrated |
| Max. intermediate circuit voltage DC |
560 |
| Brake resistance |
68 |
| Pulse power, brake resistance |
8.5 |
| Nominal voltage for logic power supply DC |
24 |
| Permissible range for logic voltage |
± 20 % |
| Current consumption of logic power supply without clamping brake |
1 |
| Output voltage class AC |
3x 0 - 360 V |
| Nominal output current |
5 |
| Nominal current per phase, effective |
5 |
| Peak current per phase, effective |
15 |
| Max. peak current duration |
5 |
| Controller nominal output |
3000 |
| Maximum output |
6000 |
| Output frequency |
01000 |
| Parameterisation interface |
Parameterisation and commissioningUSBEthernet |
| Fieldbus link |
CANopenDeviceNetEtherCATEtherNet/IPModbus/TCPPROFINETProfibus DP |
| Communication profile |
DS301/DSP402FHPP |
| Process interfacing |
I/O couplingFor 256 position sets |
| Max. fieldbus transmission rate |
1 |

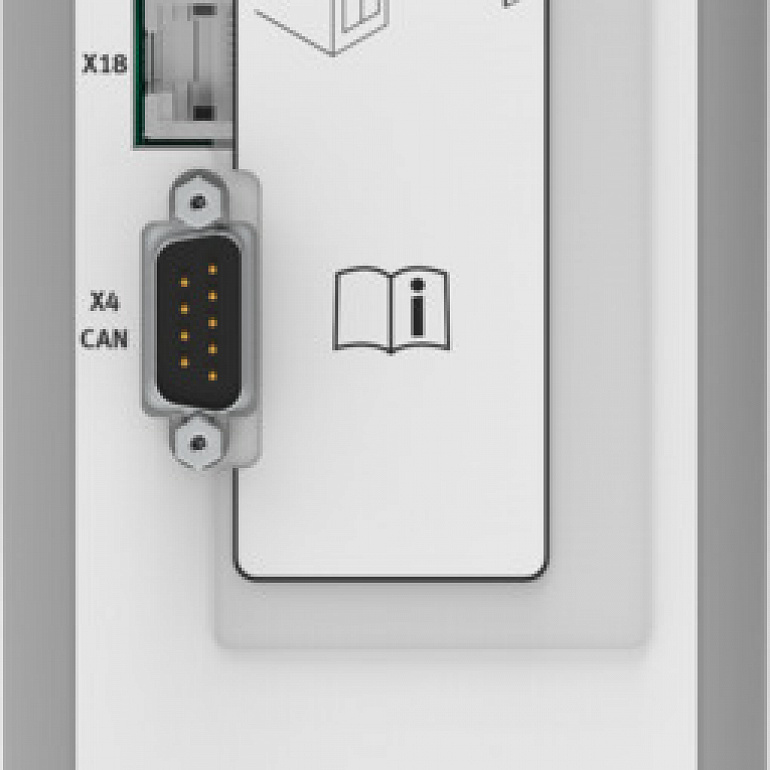

| Bus connection |
Plugs9-pinSub-D |
| Encoder interface output, features |
Resolution 16384 ppr |
| Encoder interface output, function |
Actual value feedback via encoder signals in speed control mode.Setpoint specification for downstream slave drive. |
| Encoder interface input, features |
3-phase encoder signalsEnDatHIPERFACERS422SINCOS |
| Encoder interface input, function |
Setpoint speed value as encoder signalSpecifies the speed of the slave drive in synchronous mode. |
| Number of digital logic inputs |
10 |
| Features of logic input |
Galvanically isolatedFreely configurable |
| Working range of logic input |
830 |
| Number of digital logic outputs 24 V DC |
5 |
| Features of digital logic outputs |
Galvanically isolatedFreely configurable in some cases |
| Max. current digital logic outputs |
100 |
| Number of analogue setpoint inputs |
2 |
| Features of setpoint inputs |
Differential inputsConfigurable for speedConfigurable for current |
| Working range setpoint input |
± 10 V |
| Impedance of setpoint input |
20 |
| Number of analogue monitor outputs |
2 |
| Working range of monitor outputs |
± 10 V |
| Resolution of monitor outputs |
9 |
| Features of monitor outputs |
Short-circuit proof |
