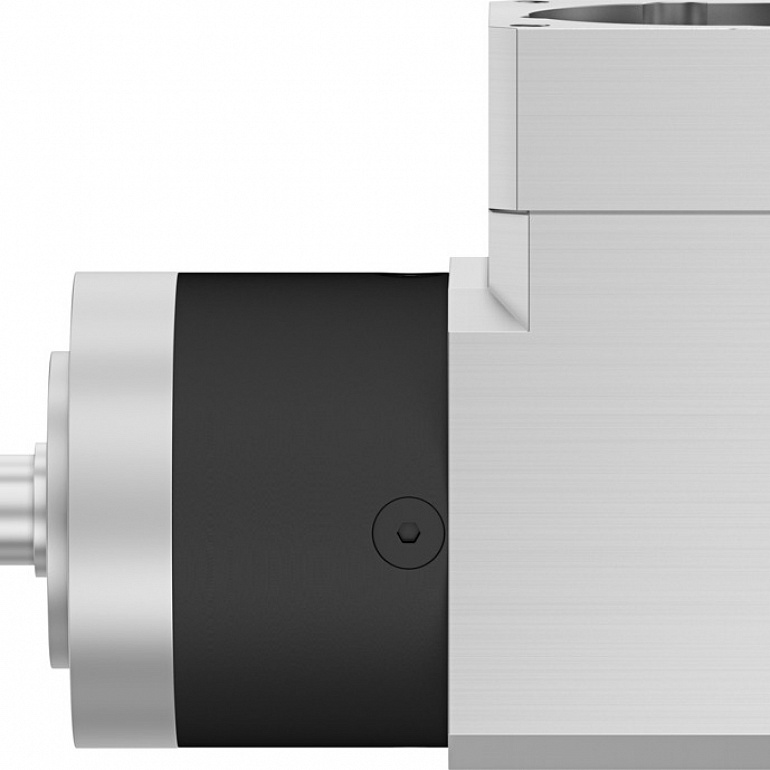

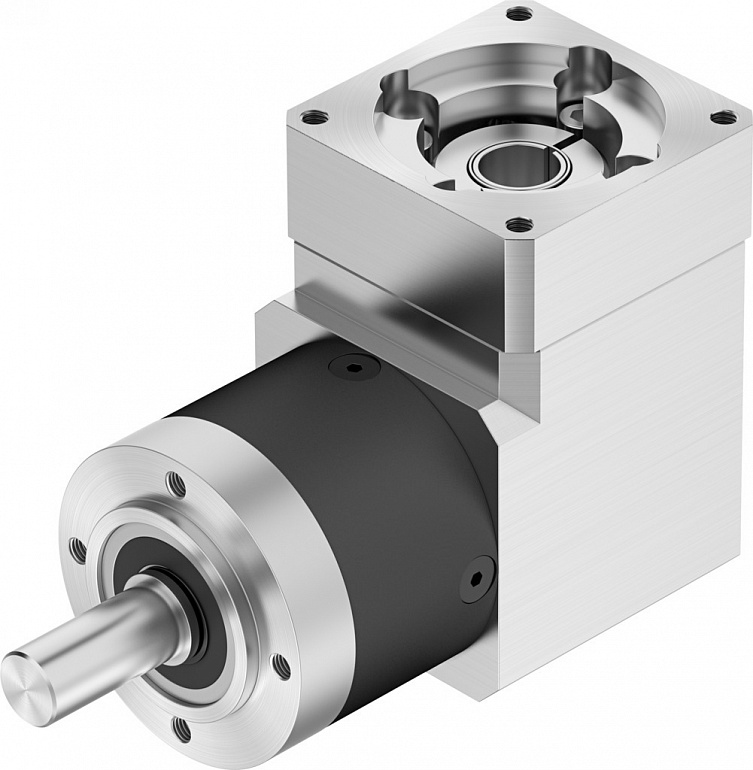

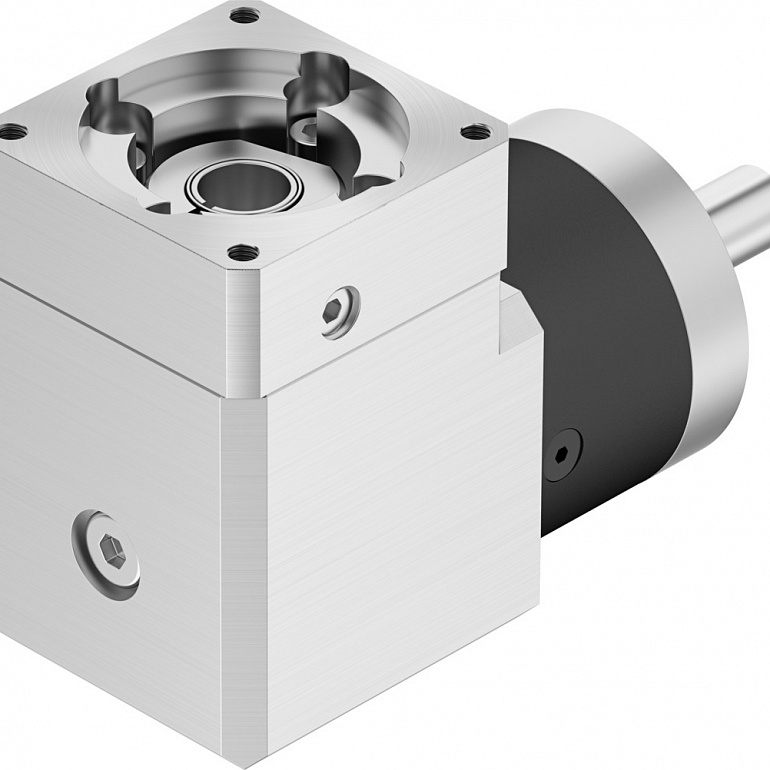

SKU: 8085344
GTIN: 4052568450892
Характеристики
| Continuous output torque | 14 |
| Max. drive speed | 13000 |
| Torsional rigidity | 2 |
| Gear unit ratio | 3:1 |
| Type of gear unit | Right-angle gear unit |
Все характеристики
| Technical Data | |
| Gear unit flange size | 60 |
| Motor flange size | 60 |
| Torsional backlash | 0.27 |
| Type of gear unit | Right-angle gear unit |
| Gear unit ratio | 3:1 |
| Max. drive speed | 13000 |
| Operating temperature of gear unit | -2590 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP54 |
| Continuous output torque | 14 |
| Mass moment of inertia of gear unit | 0.394 |
| Max. output torque | 22 |
| Max. efficiency | 95 |
| Torsional rigidity | 2 |
| Product weight | 1700 |
| Gear unit interface, output shaft | 60G |
| Gear unit interface, drive shaft | 60P |
| Note on materials | RoHS-compliant |
Приемущества
| Planetary gear unit, straight, for servo motors EMME-AS, EMMT-AS |
| Planetary gear unit, straight, for stepper motors EMMS-ST |
| Bevel gear for servo motors EMME-AS, EMMT-AS, EMMS-AS |
| Life-time lubrication |
| Degree of protection IP54 |
| Passt perfekt in unser ganzheitliches Produktportfolio von elektromechanischen Aktuatoren, Motoren, Antriebsreglern und Steuerungen |
