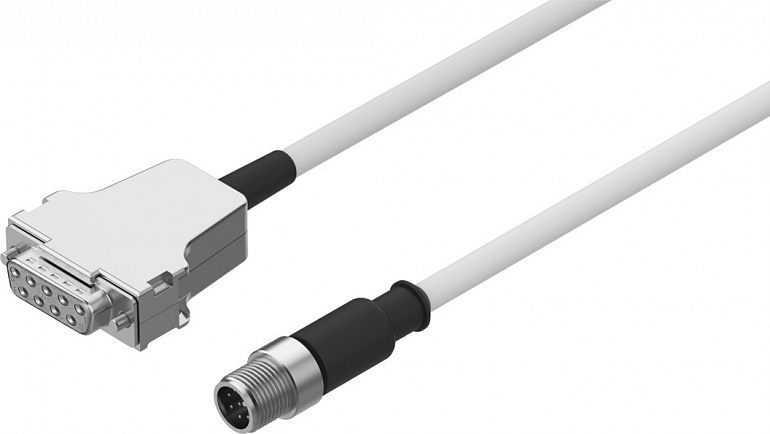

| Technical Data |
|
| Protocol |
CANopenDeviceNet |
| Electrical connection 1, function |
Field device side |
| Electrical connection 1, design |
Angular |
| Electrical connection 1, connection type |
Socket |
| Electrical connection 1, cable outlet |
Straight |
| Electrical connection 1, connector system |
Sub-D |
| Electrical connection 1, number of connections/cores |
9 |
| Electrical connection 1, used connections/cores |
6 |
| Electrical connection 1, type of mounting |
2x screw 4-40 UNC-2A |
| Electrical connection 1, connection pattern |
00995638 |
| Electrical connection 2, function |
Controller side |
| Electrical connection 2, design |
Round |
| Electrical connection 2, connection type |
Plugs |
| Electrical connection 2, cable outlet |
Straight |
| Electrical connection 2, connector system |
M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 2, number of connections/cores |
5 |
| Electrical connection 2, used connections/cores |
5 |
| Electrical connection 2, connection pattern |
00995383 |
| Nominal operating voltage DC |
24 |
| Shielding |
yes |
| Cable length |
0.1 |
| Cable diameter |
6.3 |
| Cable structure |
4 x 0.34 mm² |
| Nominal cross section conductor |
0.34 |
| Degree of protection |
IP67 |
| Note on degree of protection |
In assembled state |
| Ambient temperature |
-550 |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Note on materials |
RoHS-compliant |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| Material cable sheath |
TPE-U(PUR) |
