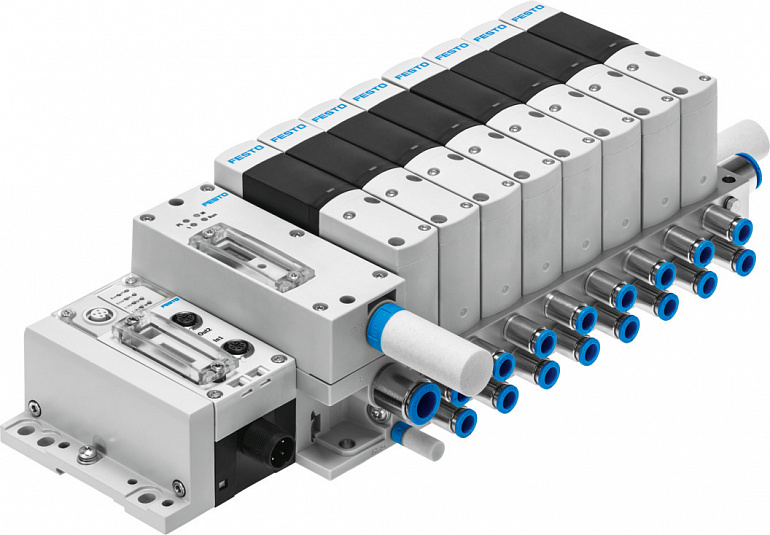

| Technical Data |
|
| Valve size |
27 |
| Valve terminal structure |
Fixed grid |
| Grid dimension |
28 |
| Max. number of valve positions |
8 |
| Exhaust-air function |
Without flow control option |
| Pilot air supply |
ExternalInternal |
| Electrical I/O system |
yes |
| Degree of protection |
IP65 |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Note on materials |
RoHS-compliant |
| Material seals |
NBRTPE-U(PU) |
| Fire test material |
UL94 HB |
| Suitable for use with food |
See supplementary material information |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium |
Lubricated operation not possibleCondensation in the valve not allowed |
| Operating pressure |
43.5116 |
| Pilot pressure |
43.5116 |
| Note on operating pressure |
0 - 8 bar with external pilot airVacuum operation at connection 3 only |
| Valve function |
Can be allocated using the Motion App |
| Motion Apps |
Leakage diagnosticsFlow controlECO drivePositioningProportional pressure regulationProportional directional control valveSoft StopPresetting of travel timeDirectional control valve functionsSupply and exhaust air flow controlModel-based proportional press |
| Type of actuation |
Electric |
| Sealing principle |
Soft |
| Design |
Piston seat |
| Type of piloting |
Pilot actuated |
| Nominal size |
4.2 |
| Standard flow rate 0.8->0 MPa (8->0 bar, 116->0 psi) |
1000 |
| Standard nominal flow rate, air flow 0.6->0,5 MPa (6->5 bar, 87->72.5 psi) |
450 |
| Standard nominal flow rate, exhaust 0.6->0.5 MPa (6->5 bar, 87->72.5 psi) |
480 |
| Flow direction |
Non-reversible |
| Suitability for vacuum |
yes |
| Nominal operating voltage DC |
24 |
| Permissible voltage fluctuations |
+/- 25% |
| Protection against direct and indirect contact |
PELV |
| Approval |
c UL us listed (OL) |
| KC mark |
KC-EMV |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Certificate issuing authority |
UL E322346 |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| Storage temperature |
-2040 |
| Media temperature |
550 |
| Ambient temperature |
550 |
| Relative air humidity |
0 - 90% |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Note on shock resistance |
Only static installation permitted when mounting with a H-rail. |
| Pneumatic connection, port 2 |
G1/8 |
| Pneumatic connection, port 4 |
G1/8 |
| Pilot air port 14 |
M5 |
| Pneumatic connection, port 1 |
G3/8 |
| Pneumatic connection, port 3 |
G3/8 |
| Pilot exhaust port 84 |
M7 |
| Breather connection |
M7 |
