SKU: 8118456

GTIN: 4052568556013

Все характеристики

Technical Data
Instructions on use	The product is suitable for industrial purposes only. Measures to eliminate radio interference may be required in residential areas.

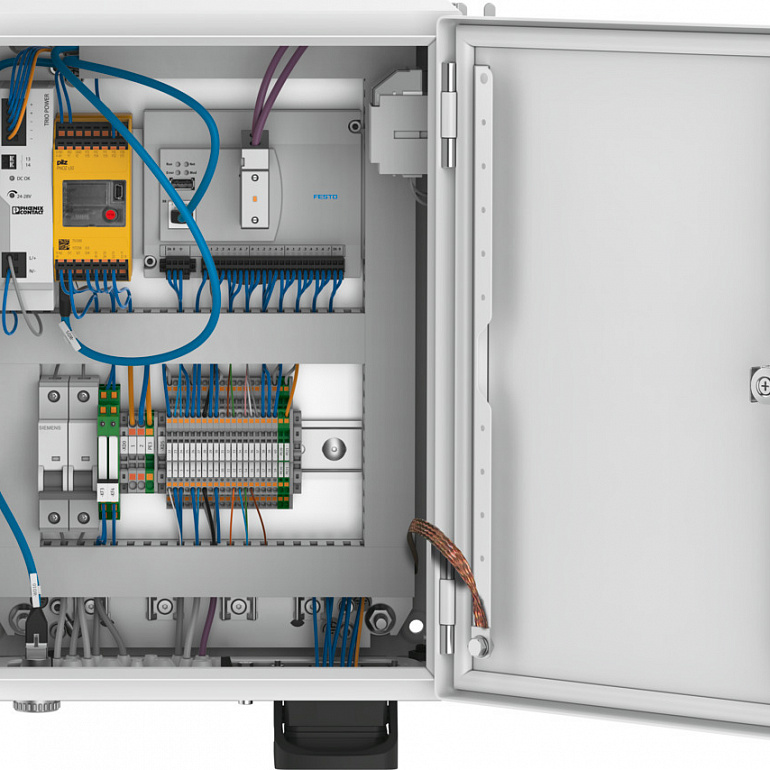

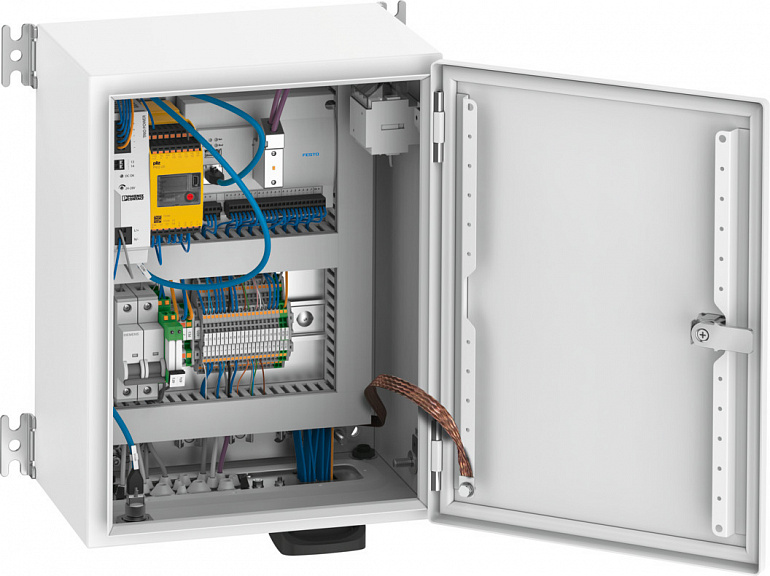

Design	Control cabinet
Performance Level (PL)	Category B, Performance Level b
Dimensions (W x L x H)	220 mm x 350 mm x 440 mm
Fuse protection (short circuit)	Internal electronic fuse
Max. current consumption	1100
Current consumption of the secondary circuit	5
Max. power supply	6
Nominal operating voltage AC	230
Mains types	TTTNIT
Mains frequency	5060
Pollution degree	2
CE mark (see declaration of conformity)	To EU EMC DirectiveTo EU Low Voltage Directive
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III
Storage temperature	-2060
Relative air humidity	Max. 50% at 40°C
Protection against direct and indirect contact	PELVEarthing of all exposed conductive parts
Degree of protection	IP54
Environmental conditions	Interior
Ambient temperature	540
Nominal altitude of use	1000 m NN
Product weight	15000
Electrical connection	Spring-loaded terminalPush-in
Note on materials	RoHS-compliant
