SKU: 8118455

GTIN: 4052568556006

Все характеристики

Technical Data
Instructions on use	The product is suitable for industrial purposes only. Measures to eliminate radio interference may be required in residential areas.

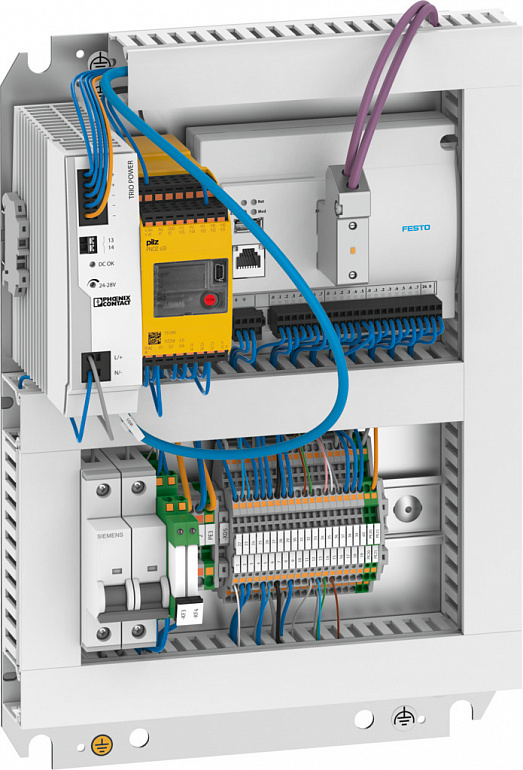

Design	Mounting plateBuilt-in safety relay unit
Performance Level (PL)	Category 3, Performance Level d
Dimensions (W x L x H)	135 mm x 254 mm x 375 mm
Fuse protection (short circuit)	Internal electronic fuse
Max. current consumption	1100
Current consumption of the secondary circuit	5
Max. power supply	6
Nominal operating voltage AC	230
Mains types	TTTNIT
Mains frequency	5060
Pollution degree	2
CE mark (see declaration of conformity)	To EU EMC DirectiveTo EU Low Voltage Directive
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III
Storage temperature	-2060
Relative air humidity	Max. 50% at 40°C
Protection against direct and indirect contact	PELVEarthing of all exposed conductive parts
Degree of protection	IP20
Environmental conditions	Interior
Ambient temperature	540
Nominal altitude of use	1000 m NN
Product weight	4500
Electrical connection	Spring-loaded terminalPush-in
Note on materials	RoHS-compliant
