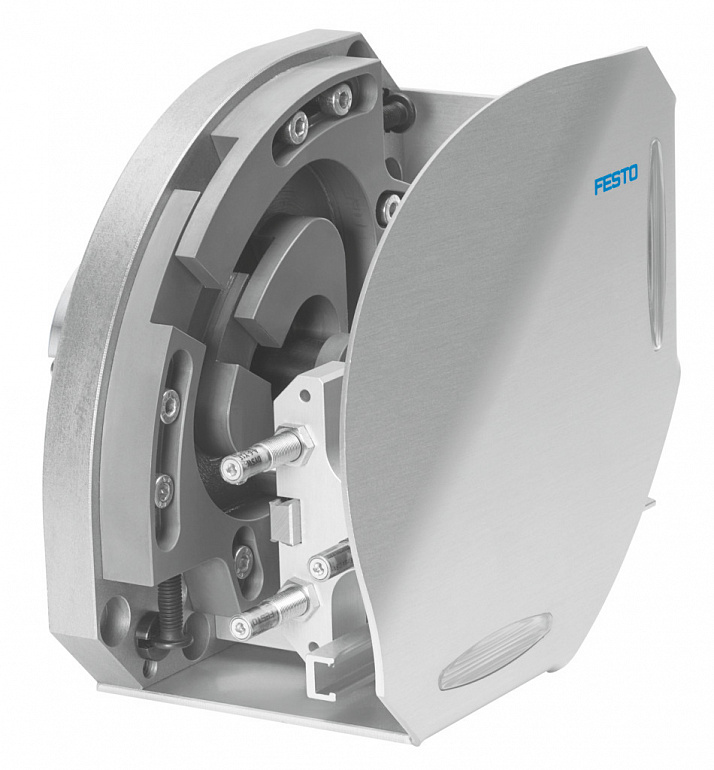

| Technical Data |
|
| Working stroke |
915 |
| Size |
10 |
| Max. linear stroke with 90° swivel angle |
90/90 mm |
| Max. Z stroke waiting position |
10 |
| Z stroke |
80100 |
| Cushioning |
Shock absorber at both endsSoft characteristic curve |
| Mounting position |
optional |
| Design |
Force pilot operated motion sequence |
| Position detection |
Via proximity switch |
| Operating pressure |
48 |
| Min. cycle time |
0.6 |
| Repetition accuracy end positions |
+/-0.02 mm |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
060 |
| Max. moment Mx |
0.6 |
| Max. moment My |
0.6 |
| Max. moment Mz |
0.6 |
| Max. effective load |
0.5 |
| Max. process force in Y direction |
30 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi) |
30 |
| Product weight |
1460 |
| Type of mounting |
Via through-hole and centring sleeve |
| Pneumatic connection waiting position |
M5 |
| Pneumatic connection |
M3 |
| Material stops |
High-alloy steel |
| Material cover |
Wrought aluminium alloyAnodised |
| Material spring pressure piece |
High-alloy steel |
| Material base plate |
Wrought aluminium alloyAnodised |
| Material retaining bracket |
Anodised |
| Material cross-guide |
Tempered steel |
| Material swivel lever |
Case-hardened steelBurnished |
| Material slotted guide plate |
Case-hardened steelHardened |
| Material sensor rail |
Wrought aluminium alloyAnodised |
| Material bar |
Wrought aluminium alloyAnodised |
| Material setting screw |
High-alloy steel |
