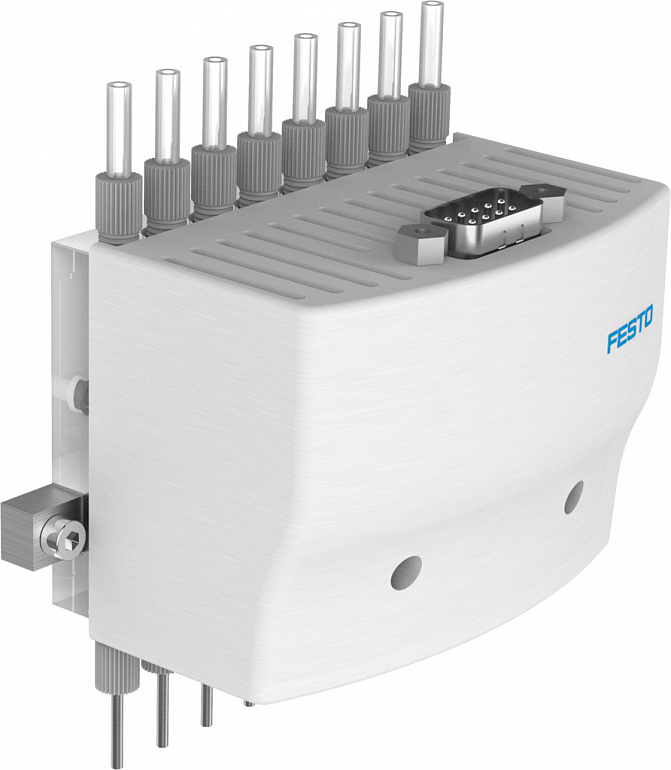

| Technical Data |
|
| Valve function |
2/2-way, closed, monostable |
| Operating pressure |
07.25 |
| Internal volume |
113 µl valve with fluid connections |
| Nominal size |
0.8 |
| Nominal width of dosing needle |
0.32 |
| Length of dosing needle |
30 |
| Grid dimension |
9 |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Type of reset |
Mechanical spring |
| Type of piloting |
Direct |
| Water flow rate at max. operating pressure |
370 µl/s |
| Min. dosing volume |
1 |
| Note on dosing volume |
Depends on configuration, environment and application |
| Typical dosing precision |
<1% CV für Volumina >5 µl<2.5% CV for volumes between 1-5 µl |
| Note on dosing precision |
Depends on configuration, environment and application |
| Max. switching frequency |
4 |
| Note on switching frequency |
Dependent on the ambient temperature and installation state |
| Switching time on |
7 |
| Note on switching time on |
Depends on configuration, environment and application |
| Switching time off |
2 |
| Note on switching time off |
Depends on configuration, environment and application |
| Duty cycle |
50% (max. switch-on time 1 s) |
| Electrical power consumption |
1.8 |
| Information on power consumption |
Specification per valve |
| Nominal operating voltage DC |
24 |
| Permissible voltage fluctuations |
+/- 10 % |
| Medium |
Liquid media |
| Note on the medium |
Observe resistance of materials that come into contact with the media |
| Instructions on use |
See application note (available on the Support Portal at festo.com) |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Storage temperature |
-2070 |
| Media temperature |
550 |
| Degree of protection |
IP30 |
| Note on degree of protection |
In assembled state |
| Ambient temperature |
540 |
| Product weight |
220 |
| Electrical connection |
9-pinPlugsSub-D |
| Type of mounting |
Either:Via through-hole for M3 screwVia female thread and centring sleeve |
| Fluid connection |
8x UNF1/4-28 |
| Note on fluid connection |
Fitting enclosed for tubing with 3 mm outside diameter |
| Material of dosing needle |
High-alloy stainless steel |
| Material number of dosing needle |
1.4301 |
| Note on materials |
RoHS-compliant |
| Material in contact with the medium |
PEEKHigh-alloy stainless steel |
| Type of actuation |
Electric |
| Nominal altitude of use |
<= 2000 m NHN |
| Relative air humidity |
0 - 95%Non-condensing |
| Pollution degree |
2 |
