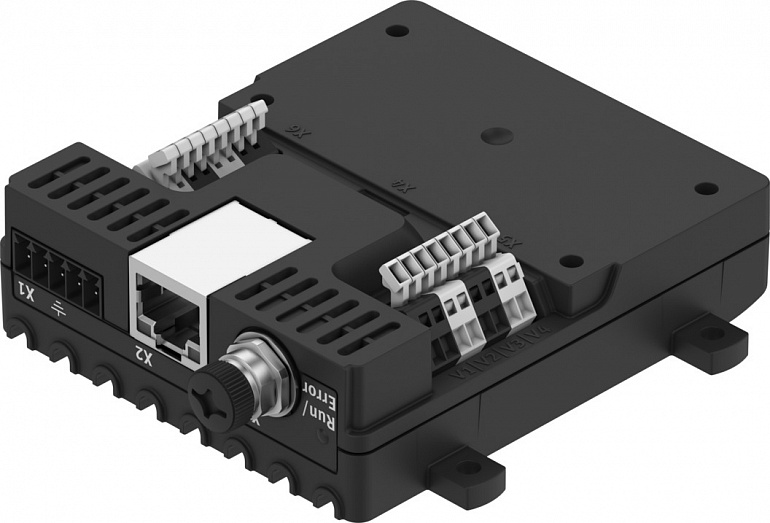

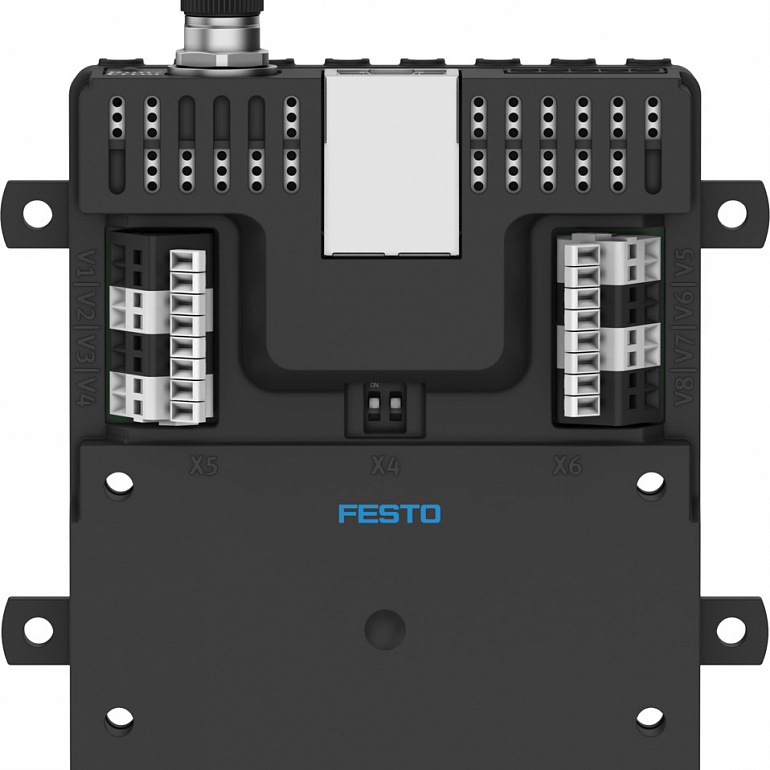

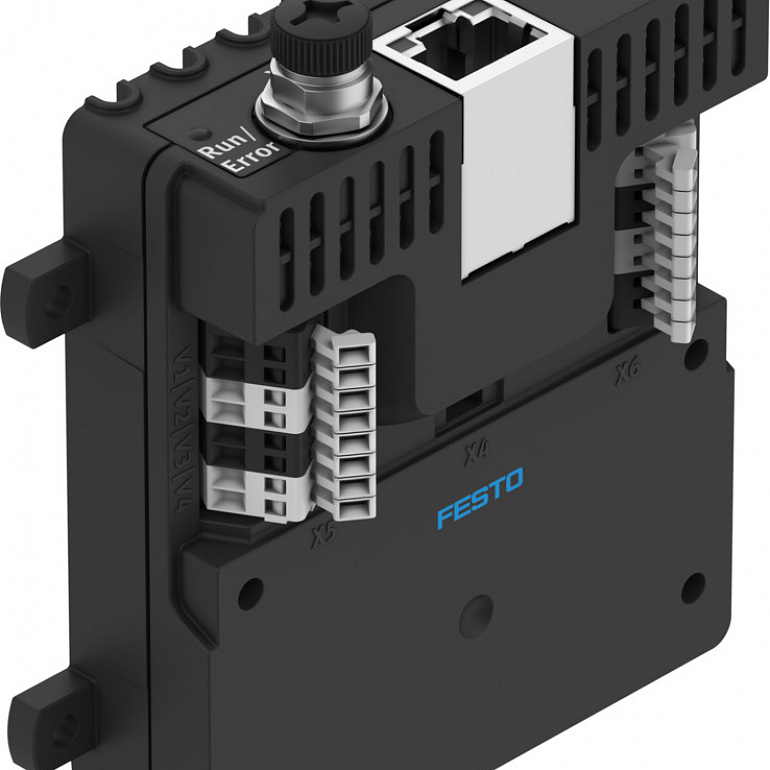

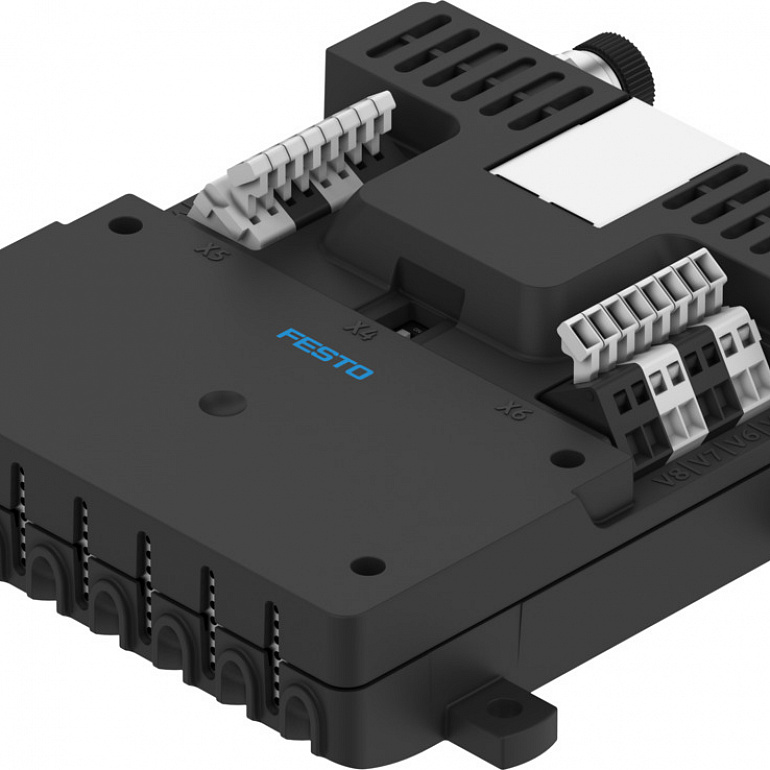

| Technical Data |
|
| Dimensions (W x L x H) |
92 mm x 100 mm x 28 mm |
| Diagnostics via LED |
ErrorRun |
| Diagnostics via bus |
Wire break at the outputShort circuit/overload at outputParameterisation errorUndervoltage in load supply |
| Mounting position |
optional |
| Parameterisation |
Parameter setting per output |
| Reverse polarity protection |
For operating voltage |
| Operator controls |
DIP switch for Baud rate |
| Internal current consumption, operating voltage |
36 |
| Trigger level |
Level 14 V ... 24 V |
| Load voltage range DC |
824 |
| Max. number of outputs |
8 |
| Inrush current, per output |
201000 |
| Holding current, per output |
20400 |
| Inrush current, total |
4 |
| Holding current, total |
1.8 |
| Inrush time |
100 |
| Time resolution |
0.2 |
| Nominal operating voltage DC |
24 |
| Pollution degree |
2 |
| Permissible voltage fluctuations |
+/- 10 % |
| Power supply, function |
Digital trigger inputPower supply |
| Power supply, connection type |
Plugs |
| power supply, connection system |
Circuit board connector, contact spacing 3.5 mm |
| Power supply, number of pins/wires |
5 |
| Power supply, connection pattern |
00997301 |
| Communication interface, connection type |
Socket |
| Communication interface, connection technology |
M8x1, A-coded according to EN 61076-2-104 |
| Communication interface, number of pins/wires |
4 |
| Communication interface, plug pattern |
00991872 |
| Communication interface, function |
Parameterisation and commissioning |
| Communication interface, protocol |
ASCII via RS232 |
| Communication interface, transmission rate |
9.6 - 115.2 kBd |
| Communication interface, galvanic isolation |
no |
| Ethernet interface, connection type |
Socket |
| Ethernet interface, connection system |
RJ45 |
| Ethernet interface, transmission rate |
10/100 Mbit/s |
| Ethernet interface, function |
Parameterisation and commissioning |
| Ethernet interface, protocol |
Modbus® TCP |
| Ethernet interface, connection pattern |
00995789 |
| Electrical connection output, connection type |
2x terminal strip |
| Electrical connection output, connector system |
Spring-loaded terminal |
| Electrical connection output, number of connections/cores |
8 |
| Electrical connection output, connection pattern |
00997304 |
| Electrical connection for output, conductor cross section |
0.080.5 |
| Electrical connection output, function |
Switching output |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveTo EU Low Voltage Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Storage temperature |
-2070 |
| Relative air humidity |
0 - 95%Non-condensing |
| Degree of protection |
IP20 |
| Ambient temperature |
050 |
| Approval |
RCM trademark |
| Nominal altitude of use |
<= 2000 m NHN |
| Product weight |
98 |
| Type of mounting |
With through-hole |
| Housing colour |
Black |
| Material housing |
PA |
| Note on materials |
RoHS-compliant |
