SKU: 8104299
GTIN: 4052568560096
Все характеристики
| Technical Data | |

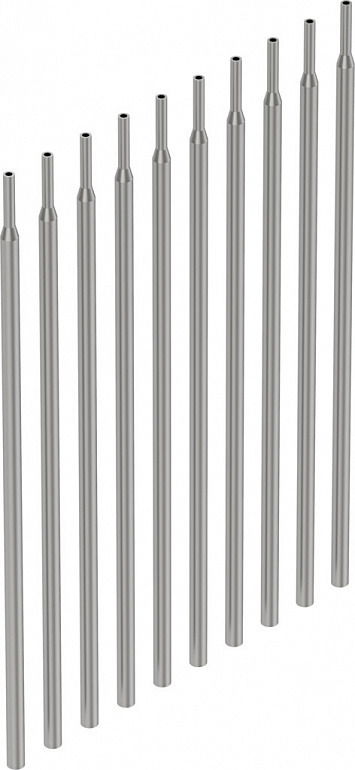

| Size of pack | 10 |
| Outside diameter dosing needle | 1.6 |
| Length of dosing needle | 60 |
| Nominal width of dosing needle | 0.6 |
| Design of dosing needle | with tapering |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitable for use with food | See supplementary material information |
| Fluid connection | Terminal connection |
| Medium | Liquid mediaGaseous media |
| Note on the medium | Observe resistance of materials that come into contact with the mediaMaximum particle size 5 µm |
| Operating pressure | 04 |
| Standard nominal flow rate (standardised to DIN 1343) | 5.47 |
| Note on standard nominal flow rate | In case of a pressure drop of 1 -> 0 bar (gaseous media) |
| Flow rate Kv | 0.012 |
| Note on flow rate Kv | For medium water |
| Media temperature | 560 |
| Ambient temperature | 560 |
| Storage temperature | -2070 |
| Mounting position | optional |
| Product weight | 4.1 |
| Note on materials | RoHS-compliant |
| Material of dosing needle | High-alloy stainless steel |
| Material number of dosing needle | 1.4404 |
| Material in contact with the medium | High-alloy stainless steel |
Приемущества
| For dosing applications with the highest precision |
| Length of dosing needle 30 mm or 60 mm |
| Outside diameter 1.6 mm |
| Nominal width 0.3 mm, 0.6 mm or 1.2 mm |
| High corrosion resistance (corrosion resistance class CRC 3 to Festo standard 940 070) and chemical resistance |
| Design with chamfer and/or with taper |
| Pack of 10 |
