SKU: 8082250
Все характеристики
| Technical Data | |
| Req. flatness mounting surfaces | 0.1 |
| Mounting position | Horizontal |

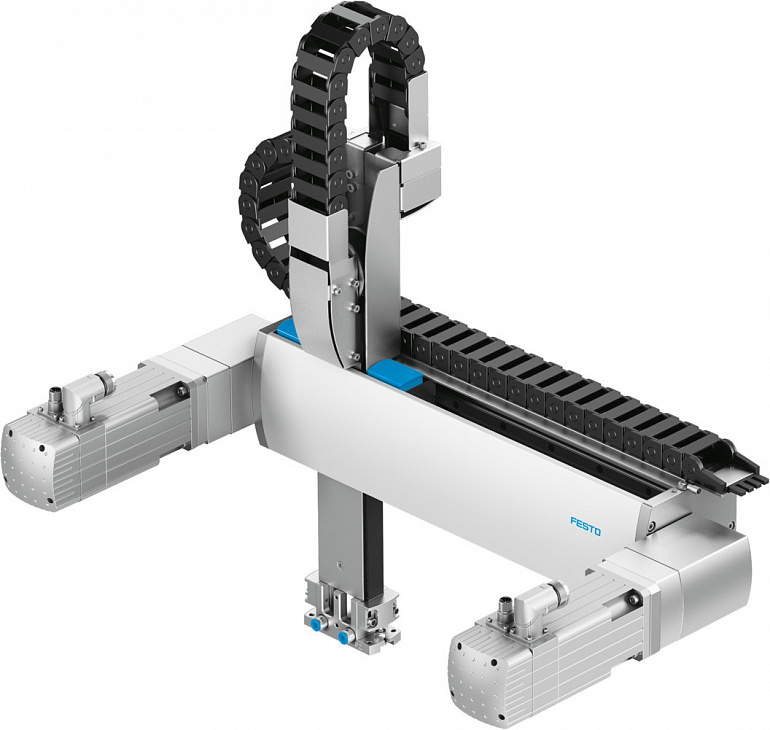

| Design | Linear gantry systemWith electric drive modules |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -1060 |
| Relative air humidity | 0 - 90% |
| Ambient temperature | 1040 |
| Maintenance interval | 2500 |
| Note on materials | RoHS-compliant |
| Material adapter plate | Anodised aluminium |
| Material mounting bracket | High-alloy stainless steel |
| Material energy chains | PA-reinforced |
Приемущества
| Parallel kinematic drive concept for maximum dynamic response |
| Ready-to-install complete system including energy chain for cables or tubing as well as suitable motor and servo drive package |
| Flexible working area due to scalable strokes in the Y and Z directions |
| Based on linear gantry EXCT |
| Maximum dynamic response and efficient operation up to mx. 95 picks/min. |
| For rapid processes with high cycle rates like pick & place, feeding parts, stacking, packaging tasks |
| Passt perfekt in unser ganzheitliches Produktportfolio von elektromechanischen Aktuatoren, Motoren, Antriebsreglern und Steuerungen |
Документы
| YXCL_YXML_EN.PDF |
| Datasheet |
