SKU: 8024299
Все характеристики
| Technical Data | |
| Req. flatness mounting surfaces | 0.1 |
| Mounting position | Horizontal |

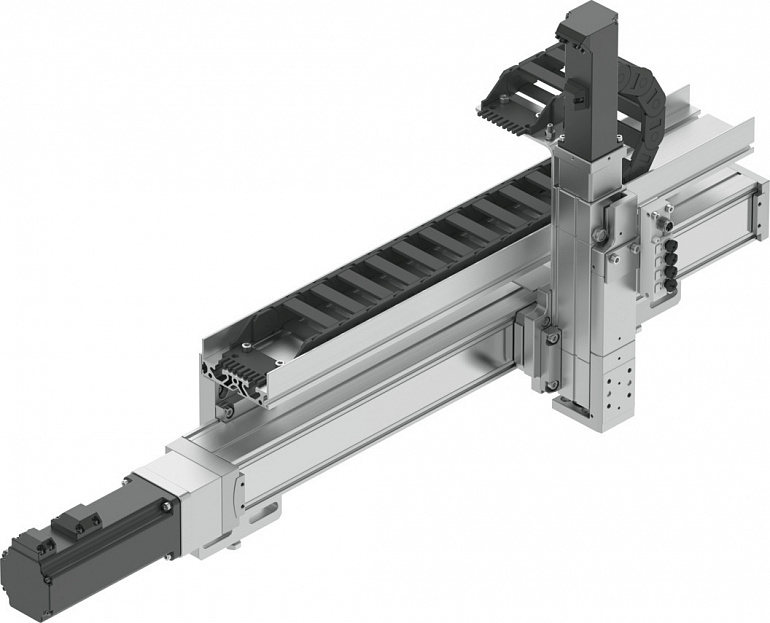

| Design | Linear gantry systemWith electric and pneumatic drive modules |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -2060 |
| Relative air humidity | 0 - 90% |
| Ambient temperature | 545 |
| Maintenance interval | 2500 |
| Note on materials | RoHS-compliant |
| Material adapter plate | Anodised aluminiumCoated steel |
| Material mounting bracket | High-alloy stainless steel |
| Material energy chains | PA-reinforced |
Приемущества
| Ready-to-install complete system including energy chain for cables or tubing as well as suitable motor and servo drive package |
| For two-dimensional movements in vertical working areas |
| Flexible working area due to scalable strokes in the Y and Z directions |
| Serial kinematic drive concept based on toothed belt and spindle axes |
| Choice of vertical axis - pneumatic or electric |
| High mechanical rigidity and sturdy design |
| Ideal for long gantry strokes and heavy loads |
| Passt perfekt in unser ganzheitliches Produktportfolio von elektromechanischen Aktuatoren, Motoren, Antriebsreglern und Steuerungen |
Документы
| YXCL_YXML_EN.PDF |
| Datasheet |
