SKU: 8026576
Все характеристики
| Technical Data | |
| Size | 30 |
| Mounting position | Vertical |

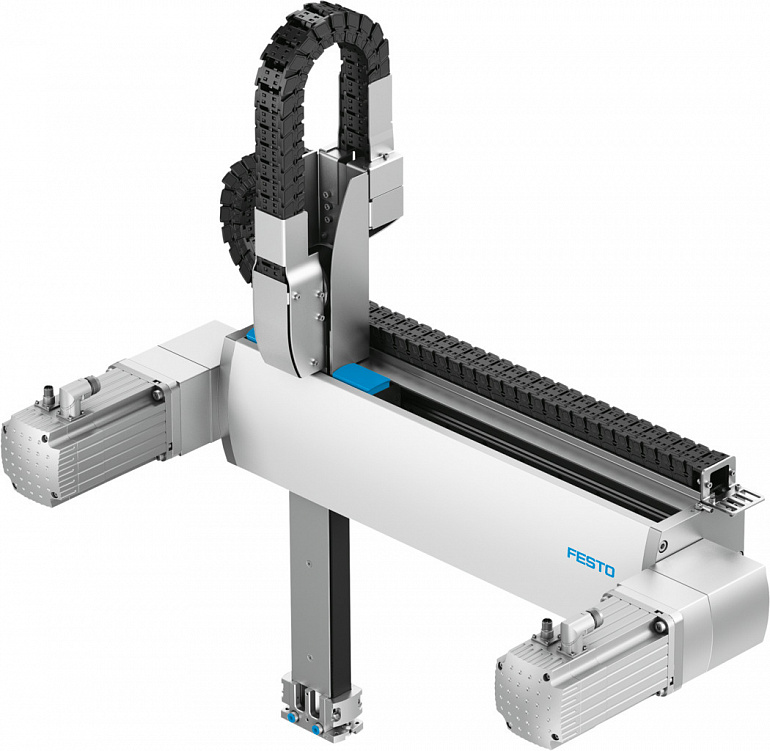

| Design | Linear gantry |
| Operating pressure | -0.958 |
| Max. acceleration | 50 |
| Max. speed | 5 |
| Repetition accuracy | ±0.1 mm |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -1060 |
| Relative air humidity | 0 - 90% |
| Sound pressure level | 78 |
| Degree of protection | IP40 |
| Ambient temperature | 1040 |
| Max. process force in Z direction | 300 |
| Nominal load at max. dynamic response | 3 |
| Type of mounting | Via mounting kitVia slot nuts |
| Note on materials | RoHS-compliant |
Приемущества
| Axis mechanism based on parallel kinematic operational principle |
| Very high dynamic response enables extremely short cycle times |
| For two-dimensional movements in vertical working areas |
| Flat system design and low moving dead weight |
| The motor can be flexibly mounted on 4 sides |
Документы
| EXCT_EN.PDF |
| Datasheet |
