SKU: 8024305
Все характеристики
| Technical Data | |
| Req. flatness mounting surfaces | 0.1 |
| Required parallelism of the mounting surfaces | 0.1 |
| Mounting position | Horizontal |

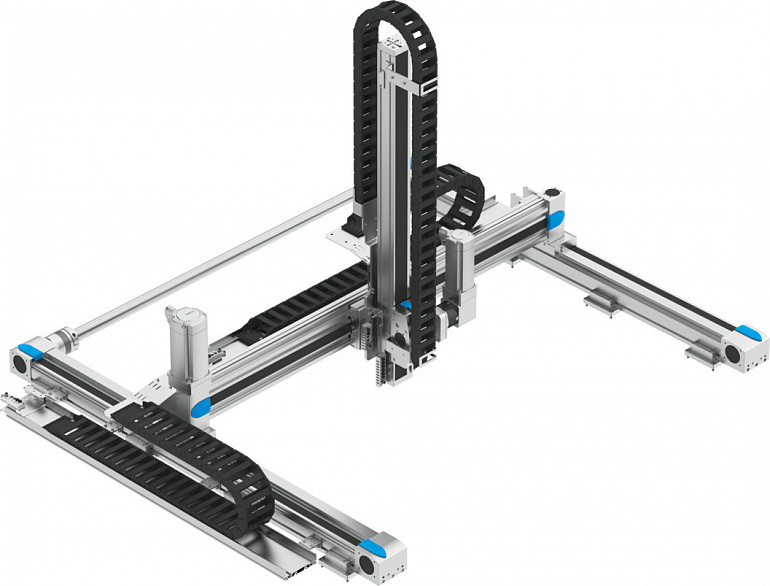

| Design | 3D gantry systemWith electric and pneumatic drive modules |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -2060 |
| Relative air humidity | 0 - 90% |
| Ambient temperature | 545 |
| Maintenance interval | 2500 |
| Note on materials | RoHS-compliant |
| Material adapter plate | Anodised aluminiumCoated steel |
| Material mounting bracket | High-alloy stainless steel |
| Material energy chains | PA-reinforced |
Приемущества
| Ready-to-install complete system including energy chain for cables or tubing as well as suitable motor and servo drive package |
| For three-dimensional movements in horizontal working areas |
| Flexible working area due to scalable strokes in the X, Y and Z directions |
| Serial kinematic drive concept based on toothed belt and spindle axes |
| Choice of vertical axis - pneumatic or electric |
| High mechanical rigidity and sturdy design |
| For universal use |
| Especially suitable for long strokes in all directions |
Документы
| YXCR_YXMR_EN.PDF |
| Datasheet |
