SKU: 8159775

Все характеристики

Technical Data
Size	15
Stroke of the X-axis	2001000
Stroke of the Y-axis	200700
Mounting position	Horizontal

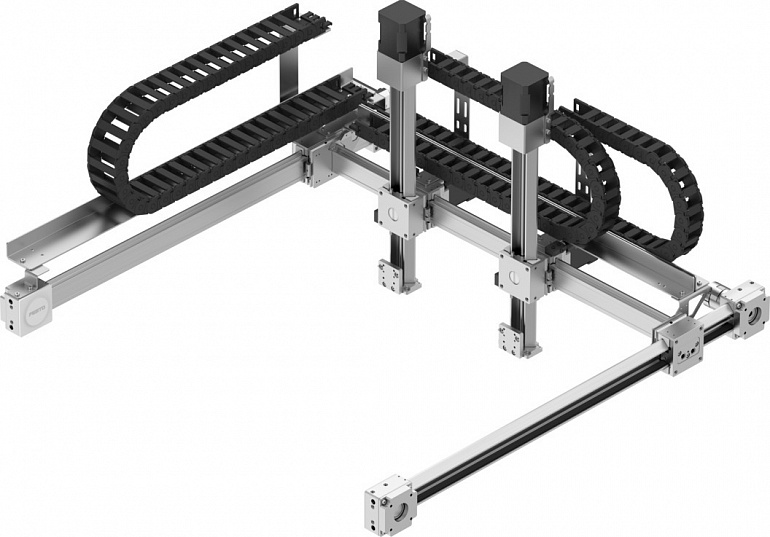

Design	3D gantry system
Type of motor	Stepper motor
Max. acceleration	1
Max. speed	0.5
Repetition accuracy	±0.1 mm
Max. search speed X-axis	0.03
Max. creep speed X-axis	0.003
Max. search speed velocity Y-axis	0.03
Max. creep speed Y-axis	0.003
Max. search speed Z-axis	0.015
Max. creep speed Z-axis	0.003
Nominal voltage X-axis	1.68
Nominal voltage Y-axis	3.2
Nominal voltage Z-axis	3.2
Nominal current X-axis	4.2
Nominal current Y-axis	2
Nominal current Z-axis	2
Nominal current per phase, effective	24.2
KC mark	KC-EMV
CE mark (see declaration of conformity)	To EU EMC Directive
UKCA marking (see declaration of conformity)	To UK instructions for EMC
LABS (PWIS) conformity	VDMA24364 zone III
Storage temperature	-1060
Relative air humidity	0 - 90%
Degree of protection	IP10
Ambient temperature	1040
Motor holding torque	0.51.4
Max. process force in Z direction	15
Feed constant of the X-axis	64
Feed constant of the Y-axis	37.7
Feed constant of the Z-axis	5
Type of mounting	With female thread M3
Note on materials	RoHS-compliant
