SKU: 8031049
Все характеристики
| Technical Data | |
| Req. flatness mounting surfaces | 0.1 |
| Mounting position | Horizontal |
| Design | Single-axis systemWith electric drive modules |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -2060 |
| Relative air humidity | 0 - 90% |
| Ambient temperature | 545 |
| Maintenance interval | 2500 |
| Note on materials | RoHS-compliant |
| Material adapter plate | Anodised aluminium |
| Material mounting bracket | High-alloy stainless steel |
| Material energy chains | PA-reinforced |
Приемущества

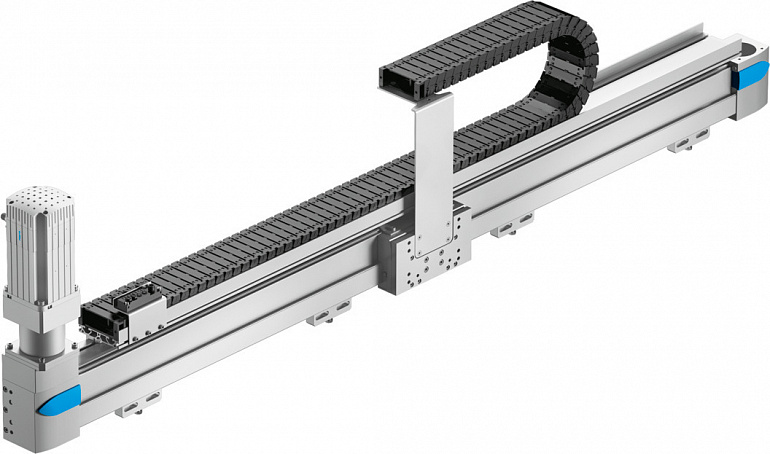

| Ready-to-install single-axis solution including energy chain for cables or tubing as well as suitable motor and servo drive package |
| For any single-axis movement |
| For horizontal mounting position |
| Based on the axis series EGC-TB (toothed belt axis) and EGC-HD-TB (toothed belt axis with heavy-duty guide) |
| High mechanical rigidity and sturdy design |
| Ideal for long gantry strokes and heavy loads |
| Passt perfekt in unser ganzheitliches Produktportfolio von elektromechanischen Aktuatoren, Motoren, Antriebsreglern und Steuerungen |
