SKU: 8082253
Все характеристики
| Technical Data | |
| Req. flatness mounting surfaces | 0.1 |
| Mounting position | Horizontal |

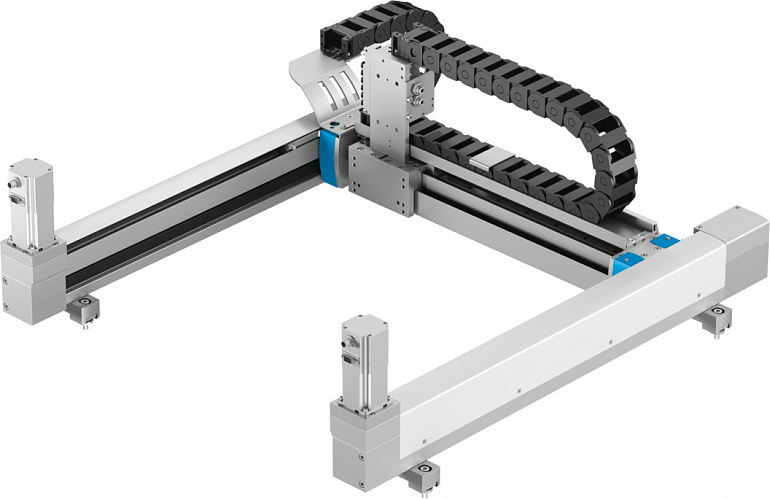

| Design | Planar surface gantryWith electric drive modules |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -1060 |
| Relative air humidity | 0 - 90% |
| Ambient temperature | 1045 |
| Maintenance interval | 2500 |
| Note on materials | RoHS-compliant |
| Material adapter plate | Anodised aluminium |
| Material mounting bracket | Anodised aluminiumGalvanised steel |
| Material energy chains | PA-reinforced |
Приемущества
| Small-scale or highly dynamic with parallel kinematic drive concept |
| Ready-to-install complete system including energy chain for cables or tubing as well as suitable motor and servo drive package |
| Based on the mechanics of the planar surface gantries EXCM and EXCH |
| High functionality, extremely compact, flat design and maximum coverage of the working area. |
| High-speed system with very large, rectangular working area |
| Cost-saving alternative to conventional robotic systems |
| Passt perfekt in unser ganzheitliches Produktportfolio von elektromechanischen Aktuatoren, Motoren, Antriebsreglern und Steuerungen |
Документы
| YXCF_YXMF_EN.PDF |
| Datasheet |
