SKU: 1923050
Все характеристики
| Technical Data | |
| Size | 40 |
| Mounting position | VerticalHorizontal |

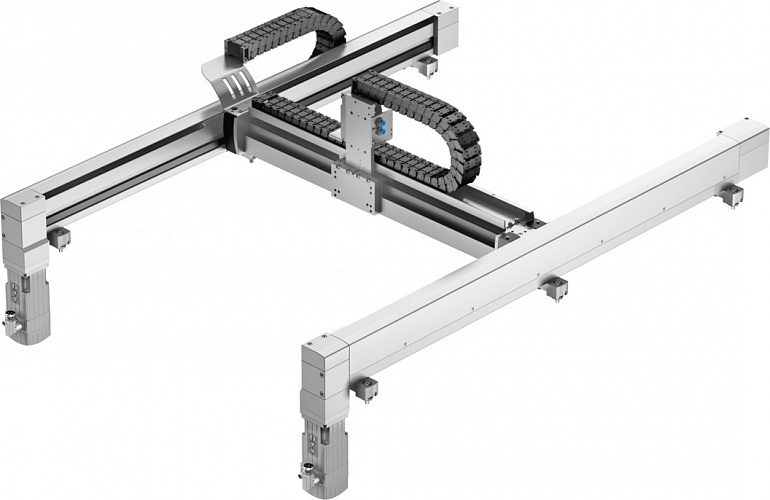

| Design | Planar surface gantry |
| Operating pressure | 8 |
| Max. horizontal acceleration | 50 |
| Max. vertical acceleration | 30 |
| Max. horizontal speed | 5 |
| Max. vertical speed | 4 |
| Repetition accuracy | ±0.1 mm |
| Duty cycle | 100% |
| CE mark (see declaration of conformity) | To EC Machinery Directive |
| UKCA marking (see declaration of conformity) | To UK regulations for machines |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -1060 |
| Relative air humidity | 0 - 90%Non-condensing |
| Sound pressure level | 74 |
| Degree of protection | IP40 |
| Ambient temperature | 1050 |
| Nominal load at max. dynamic response | 4 |
| Type of mounting | Via mounting kitVia adjusting kitVia slot nuts |
| Note on materials | RoHS-compliant |
Приемущества
| Axis mechanism based on parallel kinematic operational principle |
| Optimal dynamic response when compared with other Cartesian gantry systems |
| Drive concept with low moving dead weight and large workspace |
| High accelerations in both axis directions in combination with servo motors |
| Sustainable operation due to weight-optimised axes |
| The motor can be flexibly mounted on 2 sides |
| Passt perfekt in unser ganzheitliches Produktportfolio von elektromechanischen Aktuatoren, Motoren, Antriebsreglern und Steuerungen |
Документы
| EXCH_EN.PDF |
| Datasheet |
