SKU: 8122270
Все характеристики
| Technical Data | |
| Req. flatness mounting surfaces | 0.1 |
| Mounting position | Horizontal |

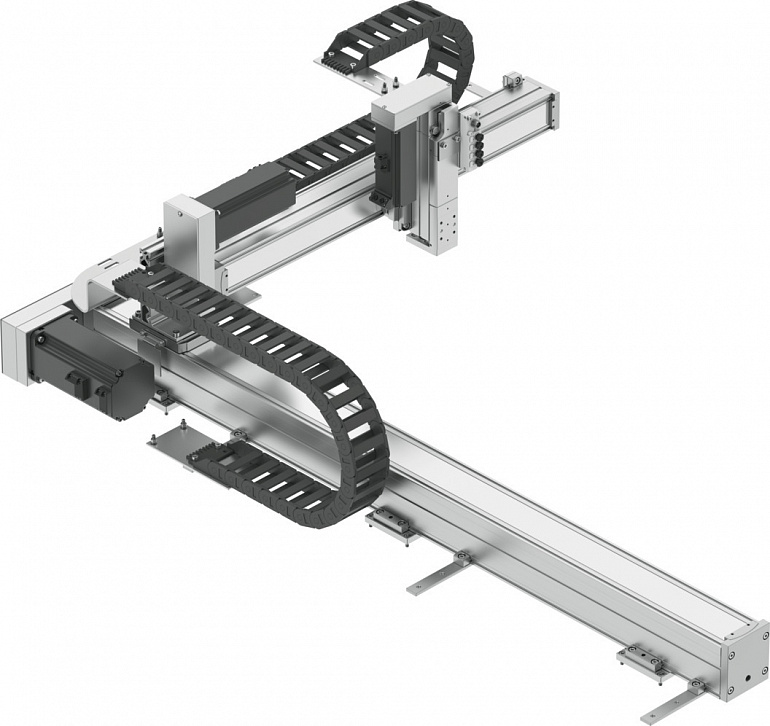

| Design | 3D gantry systemWith electric and pneumatic drive modules |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -2060 |
| Relative air humidity | 0 - 90% |
| Degree of protection | IP40 |
| Ambient temperature | 545 |
| Maintenance interval | 2500 |
| Note on materials | RoHS-compliant |
| Material adapter plate | Anodised aluminium |
| Material mounting bracket | High-alloy stainless steel |

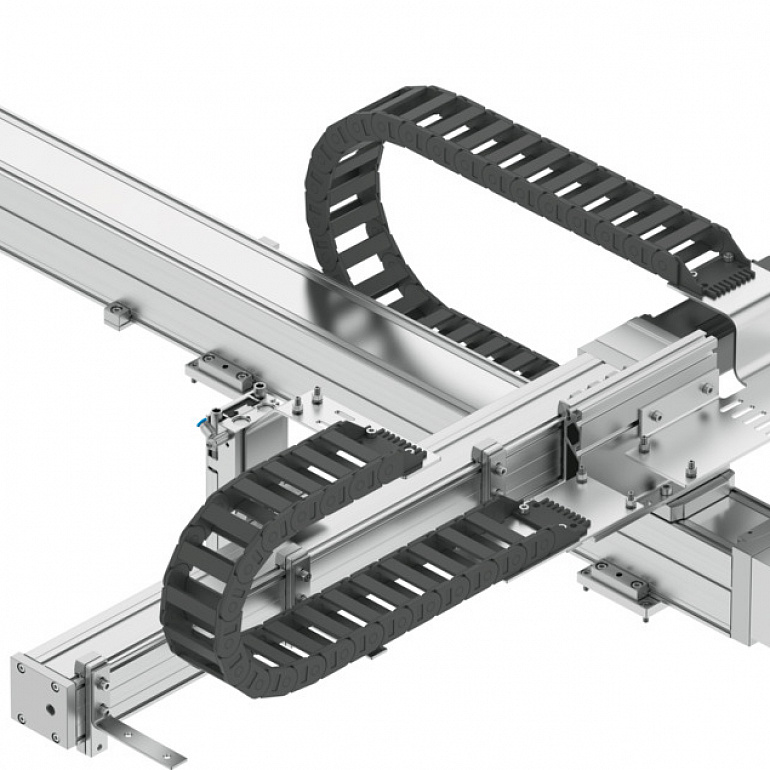

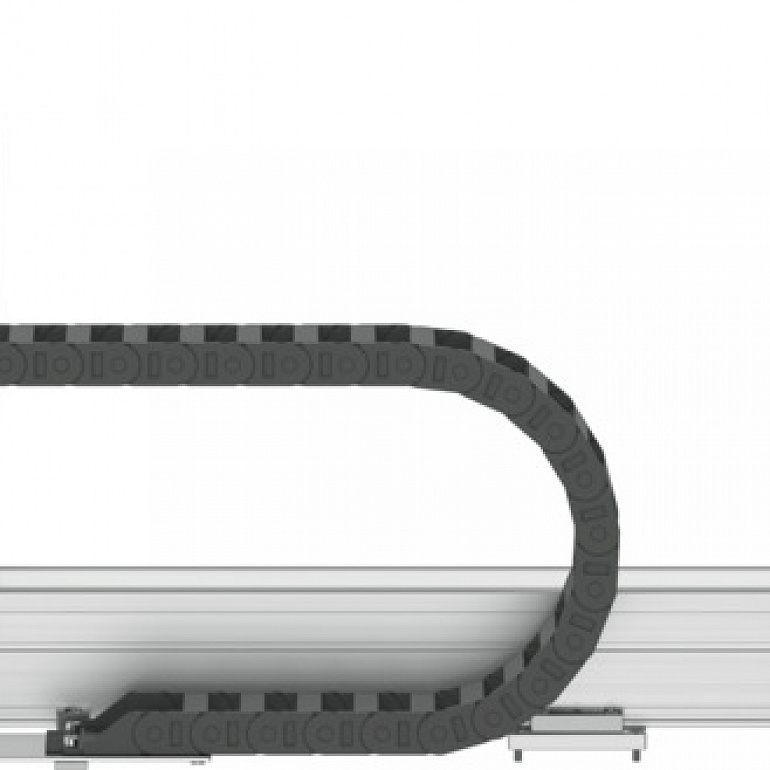

| Material energy chains | PA-reinforced |
Приемущества
| Extremely space-saving 3D system with attractive price-performance ratio |
| Self-supporting Y-axis enables freely accessible working area with few interfering contours |
| Pneumatic and electric components can be freely combined |
| For horizontal installation position |
| For simple assembly tasks and small parts handling in the electronics industry |
| Ideal for use in line assembly processes or desktop applications |
| Passt perfekt in unser ganzheitliches Produktportfolio von elektromechanischen Aktuatoren, Motoren, Antriebsreglern und Steuerungen |
