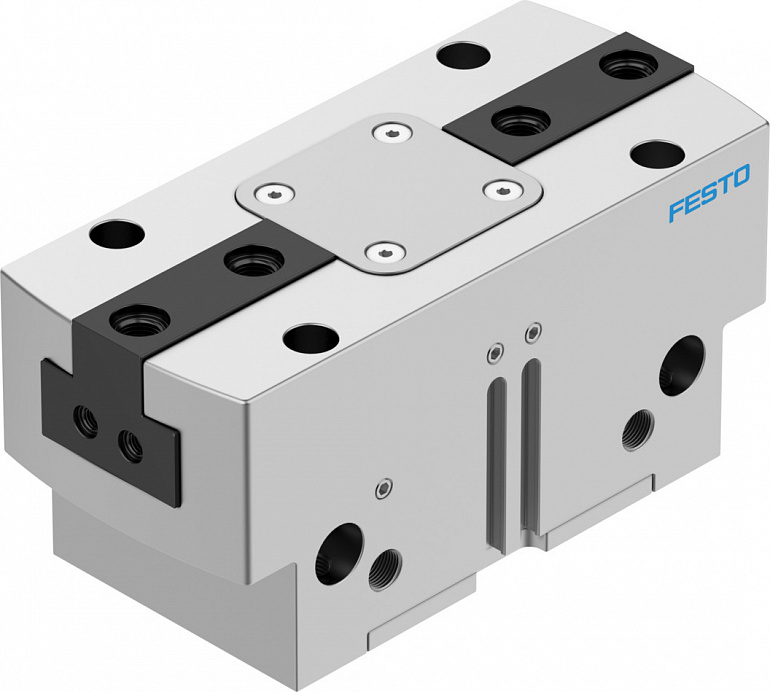

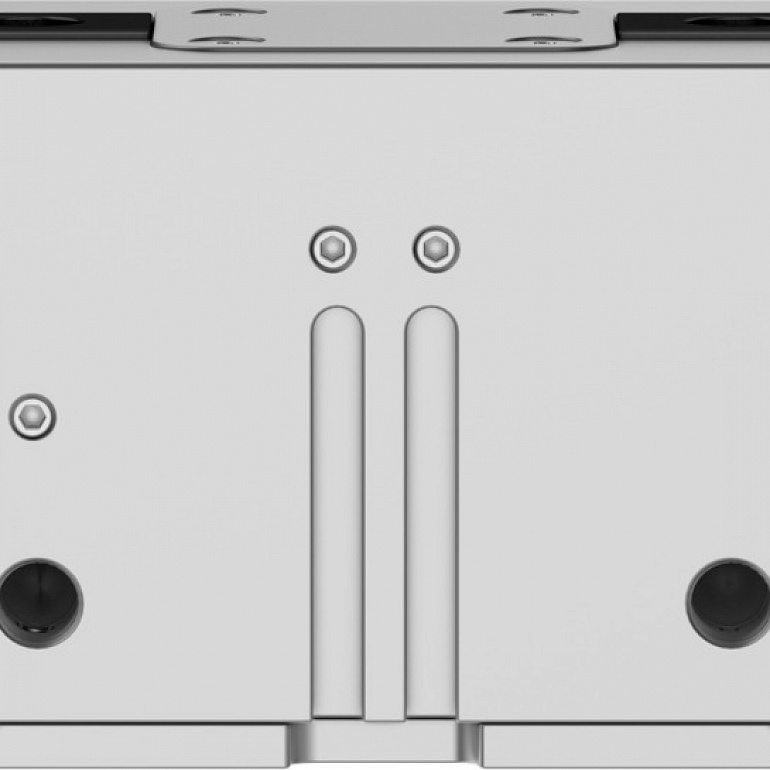

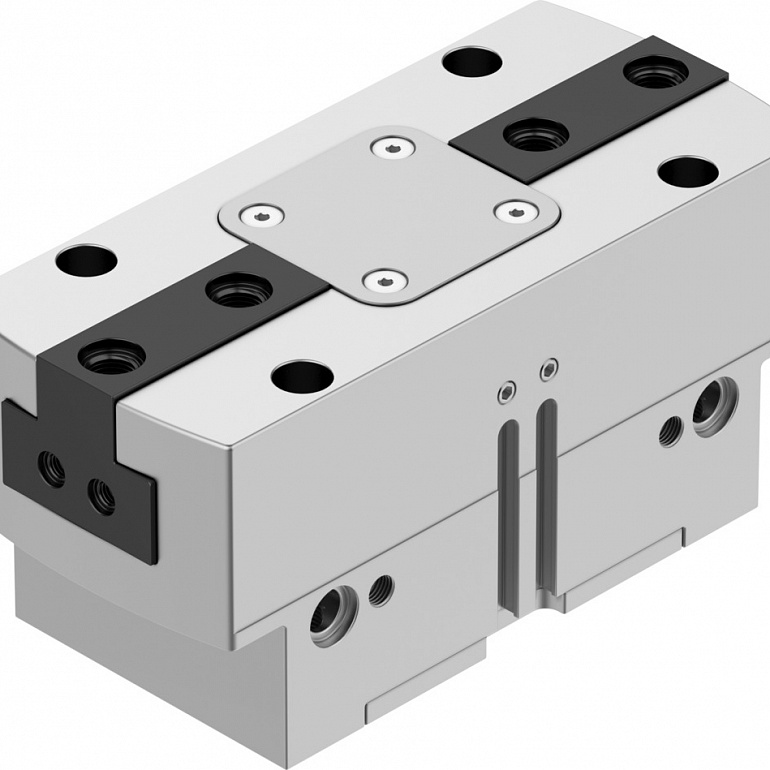

| Technical Data |
|
| Size |
63 |
| Stroke per gripper jaws |
16 |
| Max. replacement accuracy |
0.2 |
| Max. angular gripper jaw backlash ax, ay |
0.1 |
| Max. gripper jaw backlash Sz |
0.02 |
| Rotationally symmetrical |
0.2 |
| Repetition accuracy, gripper |
0.05 |
| Number of gripper jaws |
2 |
| Drive system |
Pneumatic |
| Mounting position |
optional |
| Mode of operation |
Double-acting |
| Gripper function |
Parallel |
| Gripper force back-up |
None |
| Design |
Force pilot operated motion sequence |
| Position detection |
Via proximity switch |
| Symbol |
00991894 |
| Operating pressure |
38 |
| Operating pressure of blocked air |
00.5 |
| Max. operating frequency of gripper |
2 |
| Min. opening time at 0.6 MPa (6 bar, 87 psi) |
150 |
| Min. closing time at 0.6 MPa (6 bar, 87 psi) |
156 |
| Max. mass per external gripper finger |
1260 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Degree of protection |
IP40 |
| Ambient temperature |
560 |
| Total gripping force, opening, 0.6MPa (6bar, 87 psi) |
1792 |
| Total gripping force, closing, 0.6MPa (6bar, 87 psi) |
1702 |
| Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi) |
896 |
| Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi) |
851 |
| Mass moment of inertia |
60.903 |
| Max. force on gripper jaw Fz static |
5000 |
| Max. torque at gripper Mx static |
160 |
| Max. torque at gripper My static |
180 |
| Max. torque at gripper Mz static |
140 |
| Lubrication interval for guide components |
5 |
| Product weight |
2712 |
| Type of mounting |
Either:Via female thread and centring sleeveVia through-hole and centring sleeveVia through-hole and dowel pinVia female thread and dowel pin |
| Pneumatic connection, blocked air |
M5 |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material cover cap |
High-alloy stainless steel |
| Material housing |
Anodised aluminium |
| Material gripper jaws |
Hardened steel |
