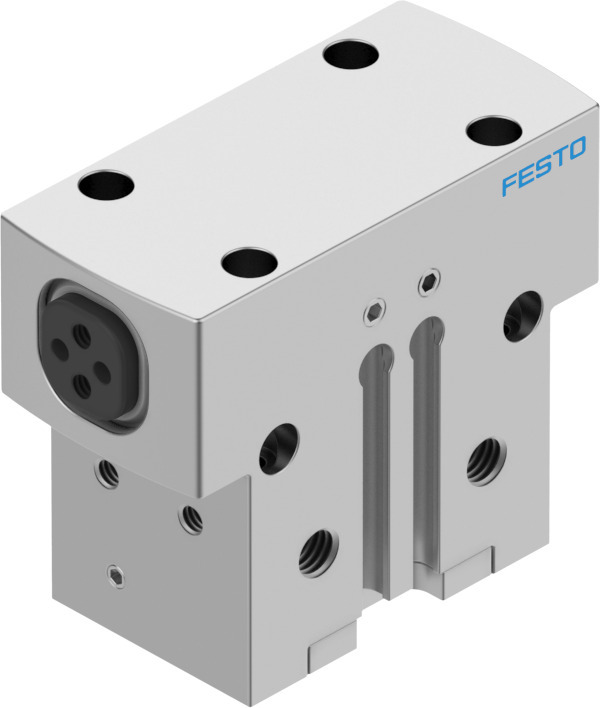

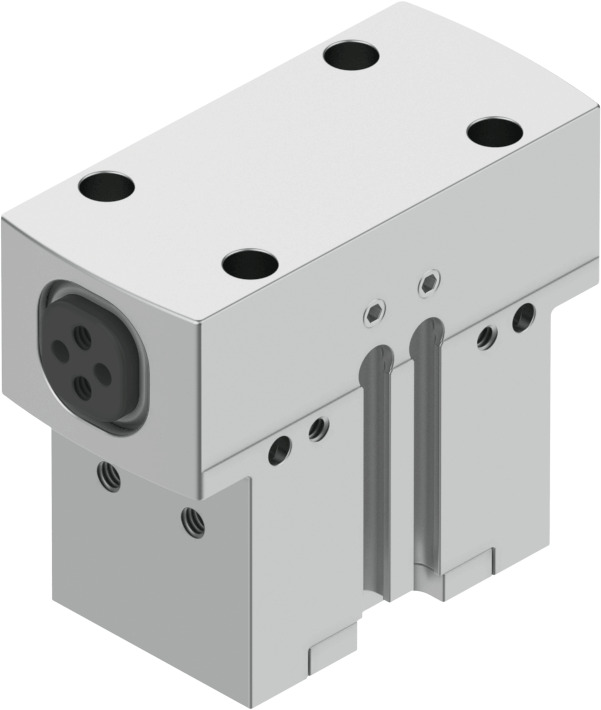

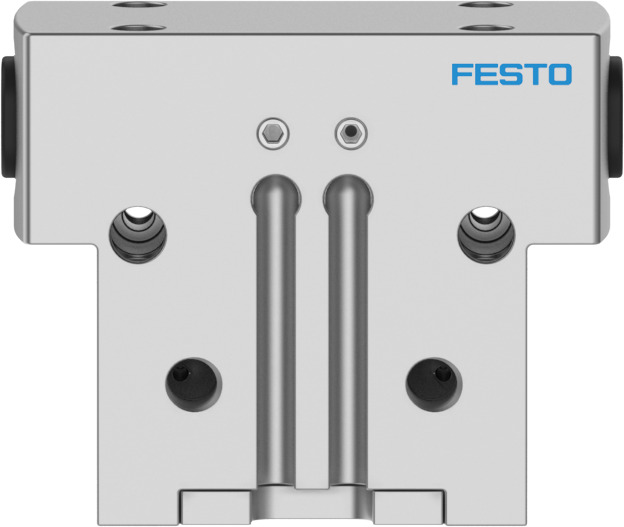

| Technical Data |
|
| Size |
16 |
| Stroke per gripper jaws |
3 |
| Max. replacement accuracy |
0.2 |
| Max. angular gripper jaw backlash ax, ay |
0.1 |
| Max. gripper jaw backlash Sz |
0.02 |
| Rotationally symmetrical |
0.2 |
| Repetition accuracy, gripper |
0.03 |
| Number of gripper jaws |
2 |
| Drive system |
Pneumatic |
| Mounting position |
optional |
| Mode of operation |
Double-acting |
| Gripper function |
Parallel |
| Gripper force back-up |
During closing |
| Design |
Force pilot operated motion sequence |
| Position detection |
Via proximity switch |
| Symbol |
00991895 |
| Operating pressure |
48 |
| Operating pressure of blocked air |
00.5 |
| Max. operating frequency of gripper |
3 |
| Min. opening time at 0.6 MPa (6 bar, 87 psi) |
30 |
| Min. closing time at 0.6 MPa (6 bar, 87 psi) |
15 |
| Max. mass per external gripper finger |
25 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries |
Metals with more than 5% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils |
| Degree of protection |
IP65 |
| Ambient temperature |
560 |
| Mass moment of inertia |
0.27 |
| Max. torque at gripper Mx static |
8 |
| Max. torque at gripper My static |
4 |
| Max. torque at gripper Mz static |
3 |
| Lubrication interval for guide components |
5 |
| Product weight |
117 |
| Type of mounting |
Either:Via female thread and centring sleeveVia through-hole and centring sleeveVia through-hole and dowel pinVia female thread and dowel pin |
| Pneumatic connection, blocked air |
M3 |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material cover cap |
High-alloy stainless steel |
| Material housing |
Anodised aluminium |
| Material gripper jaws |
Hardened steel |
