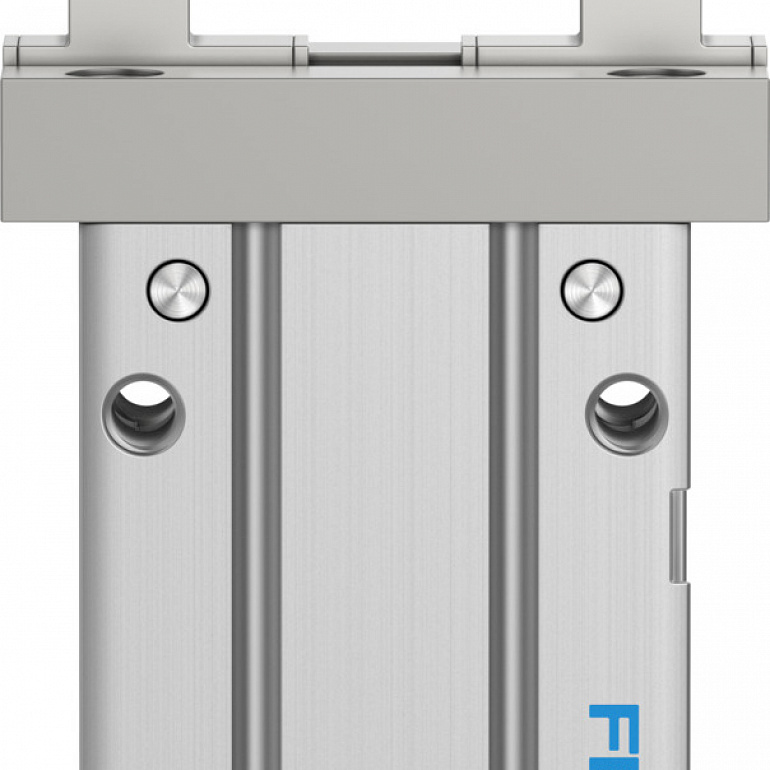

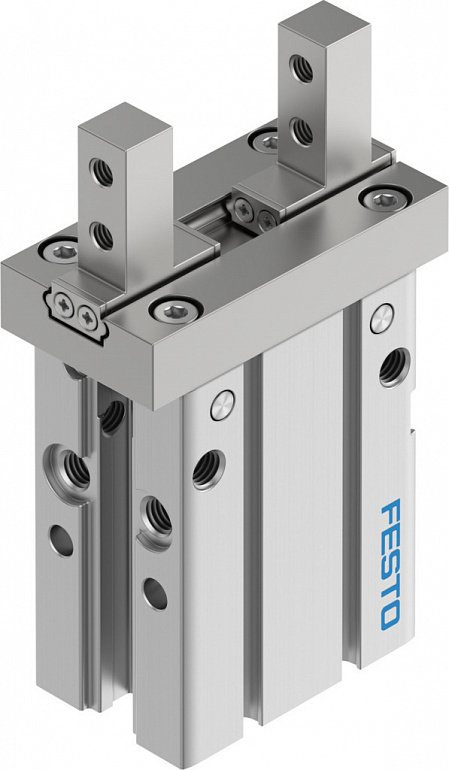

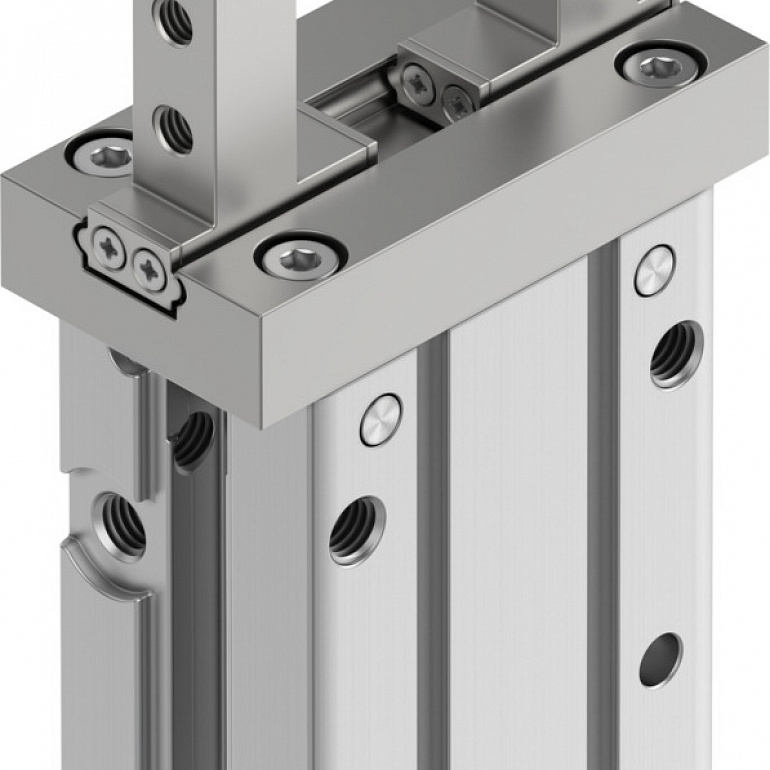

| Technical Data |
|
| Size |
20 |
| Stroke per gripper jaws |
5 |
| Max. replacement accuracy |
0.2 |
| Max. angular gripper jaw backlash ax, ay |
0 |
| Max. gripper jaw backlash Sz |
0 |
| Rotationally symmetrical |
0.2 |
| Repetition accuracy, gripper |
0.02 |
| Number of gripper jaws |
2 |
| Drive system |
Pneumatic |
| Mounting position |
optional |
| Mode of operation |
Single-actingOpen |
| Gripper function |
Parallel |
| Gripper force back-up |
During opening |
| Design |
Force pilot operated motion sequence |
| Guide |
Ball guide |
| Position detection |
Via proximity switch |
| Symbol |
00997349 |
| Operating pressure |
36.25116 |
| Max. operating frequency of gripper |
3 |
| Min. opening time at 0.6 MPa (6 bar, 87 psi) |
75 |
| Min. closing time at 0.6 MPa (6 bar, 87 psi) |
29 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Ambient temperature |
-1060 |
| Total gripping force, closing, 0.6MPa (6bar, 87 psi) |
139.4 |
| Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi) |
69.7 |
| Mass moment of inertia |
0.515 |
| Max. force on gripper jaw Fz static |
101.3 |
| Max. torque at gripper Mx static |
1.43 |
| Max. torque at gripper My static |
1.3 |
| Max. torque at gripper Mz static |
1.3 |
| Product weight |
224 |
| Type of mounting |
Either:Direct mounting via through-holeDirect mounting via threadOn mounting frameVia through-hole and dowel pinVia female thread and dowel pin |
| Pneumatic connection |
M5 |
| Note on materials |
RoHS-compliant |
| Material housing |
Anodised aluminium |
| Material gripper jaws |
High-alloy stainless steel |
