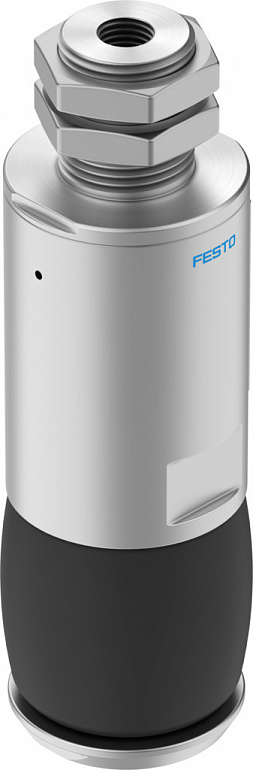

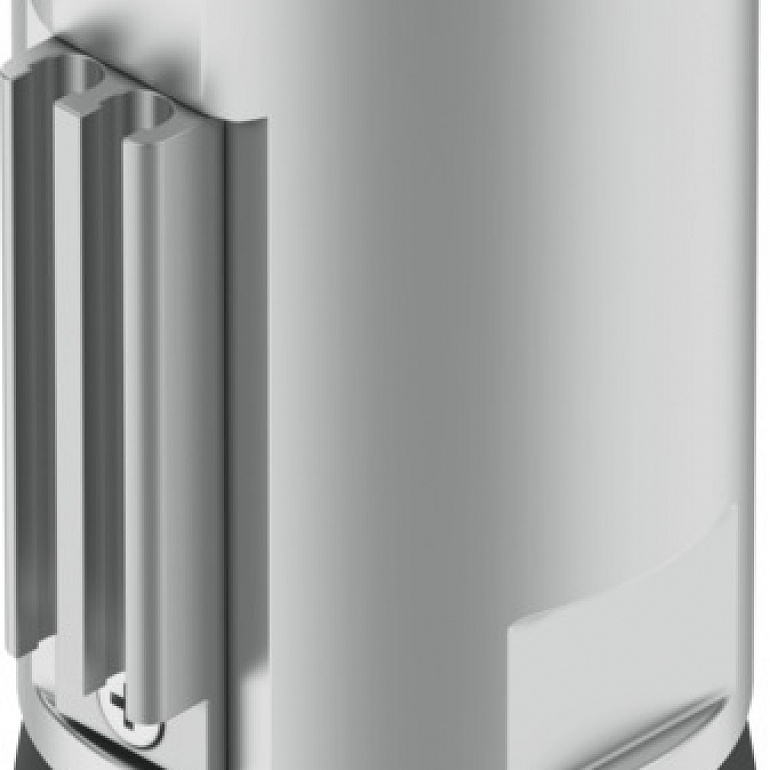

| Technical Data |
|
| Size |
41 |
| Stroke of bellows |
15.5 |
| Min. ø to be gripped |
42 |
| Max. ø to be gripped |
54 |
| Mounting position |
optional |
| Mode of operation |
Single-actingClosed |
| Gripper function |
Adaptive |
| Design |
Contracting diaphragmForce pilot operated motion sequence |
| Guide |
Basic guide |
| Position detection |
Via proximity switch |
| Operating pressure |
48 |
| Reset pressure |
1 |
| Max. operating frequency of gripper |
4 |
| Min. opening time at 0.6 MPa (6 bar, 87 psi) |
30 |
| Min. closing time at 0.6 MPa (6 bar, 87 psi) |
70 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Ambient temperature |
560 |
| Average replacement interval for the bellows |
0.5 |
| Guide value for effective load |
1.2 |
| Product weight |
300 |
| Type of mounting |
Either:Via male threadVia lock nut |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material bellows |
EPDM |
| Material housing |
AluminiumAnodised |
