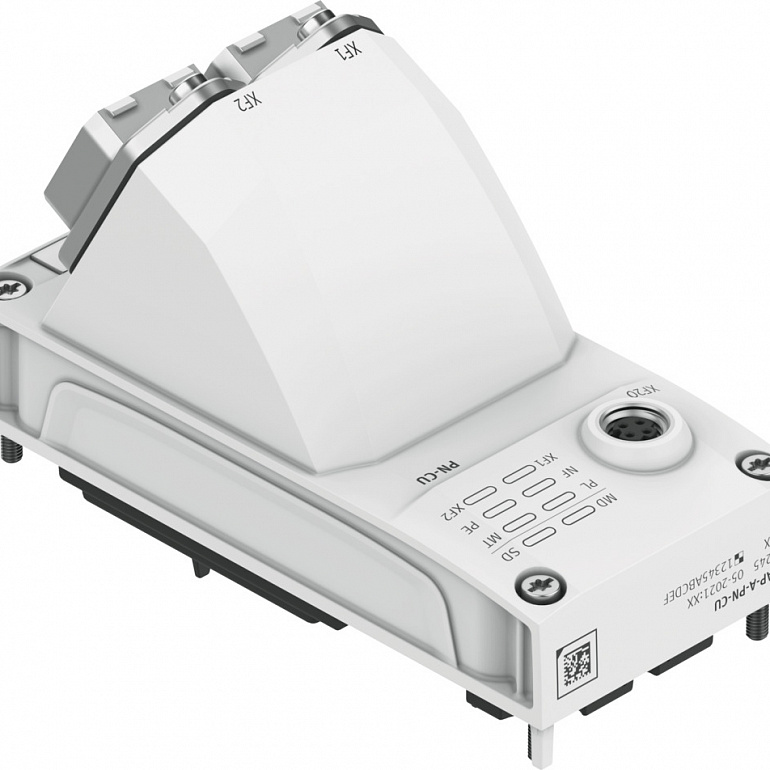

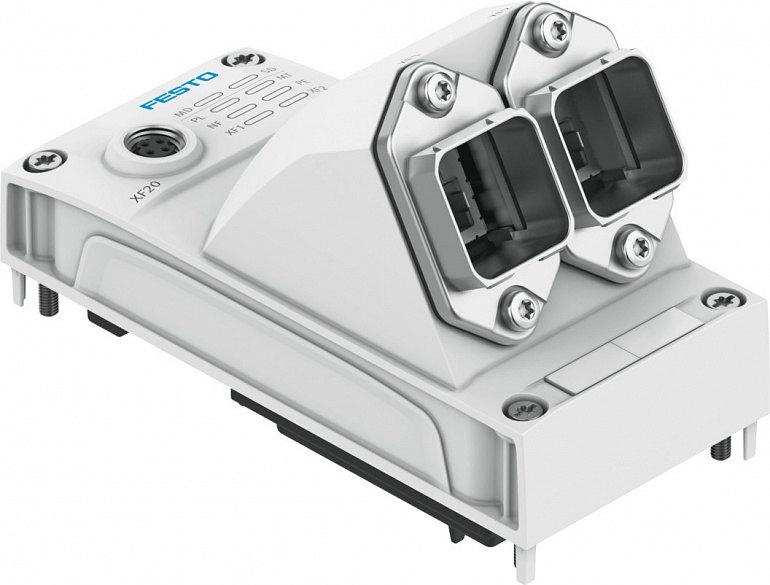

SKU: 8129245

GTIN: 4052568598587

Все характеристики

Technical Data
Dimensions (W x L x H)	50.1 mm x 107.3 mm x 94.2 mm
Grid dimension	50.1
Type of mounting	Screw-clamped
Max. number of modules	80
Product weight	167
Mounting position	optional
Ambient temperature	-2050
Note on ambient temperature	Observe ambient temperature derating according to IEC 61131-2:2017
Storage temperature	-2070
Relative air humidity	5 - 95%Non-condensing
Nominal altitude of use	<= 2000 m ASL (> 79.5 kPa)
Max. installation height	3500
Note on max. installation height	> 2000 m ASL (< 79.5 kPa)Observe ambient temperature derating according to IEC 61131-2:2017
Corrosion resistance class CRC	1 - Low corrosion stress
Vibration resistance	Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Note on vibration resistance	SG1 on H-railSG2 on direct mountingTransport application test with severity class 1 to FN 942017-4 and EN 60068-2-6
Shock resistance	Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on shock resistance	30 g/11 ms to EN 60068-2-27SG1 on H-railSG2 on direct mountingShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Protection class	III
Pollution degree	2
Overvoltage category	II
Max. cable length	100 m PROFINET
LABS (PWIS) conformity	VDMA24364-B2-L
Fire test material	UL94 V-0 (housing)
Note on materials	RoHS-compliantFree of halogenFree of phosphoric acid ester
Material cover	PBT-reinforced
Material flange	Die-cast zinc, nickel-plated
Material screws	Nickel-plated steel
Material threaded sleeve	High-alloy stainless steel
Material seals	NBR
Material o-ring	FPM
Diagnostics via LED	Diagnostics per modulePROFINET communicationPower supply, electronics/sensorsLoad power supplySystem diagnosticsService required
Diagnostics via bus	APDD invalidLoad switch-offCommunication faultElectronics/sensors overvoltageLoad overvoltageElectronics/sensors undervoltageLoad undervoltage
Fieldbus interface	Ethernet
Field bus, protocol	LLDPMRP, MRPD (ring redundancy)PROFINET FSUPROFINET I&M0 .. 3PROFINET IRTPROFINET RTPROFINET shared deviceS2 system redundancySNMP
Fieldbus interface, function	Bus connection incoming/outgoing
Field bus, connection type	2x socket
Field bus, connection system	RJ45 to IEC 61076-3-117 (V14)
Fieldbus interface, connection pattern	00995789
Field bus, connection pattern	8
Field bus interface, electrical isolation	yes
Field bus interface, transmission rate	100 Mbit/s
Fieldbus interface, note on transmission rate	100 Mbit, fast switching Ethernet
Max. address volume, inputs	1024
Max. address volume, outputs	1024
Module parameters	Configuration of voltage monitoring load supply PL
Internal cycle time	< 1 ms
Configuration support	GSDML file
Communication interface, function	System communication XF20 OUT
Communication interface, connection type	Socket
Communication interface, connection technology	M8x1, D-coded according to EN 61076-2-114
Communication interface, number of pins/wires	4
Communication interface, plug pattern	00995937
Communication interface, protocol	AP
Communication interface, shielding	yes
Note regarding operating voltage	SELV/PELV fixed power supplies requiredNote voltage drop
Note on nominal operating voltage DC	Protected Extra-Low-Voltage to IEC 60204-1
Nominal operating voltage DC of load	24
Permissible voltage fluctuation of load	± 25 %
Nominal DC operating voltage, electronics/sensors	24
Permissible voltage fluctuations for electronics/sensors	± 25%
Intrinsic current consumption at nominal operating voltage for electronics/sensors	Typically 80 mA
Intrinsic current consumption at nominal operating voltage load	Typically 4 mA
Power failure bridging	10
Potential separation between the supply voltages electronics/sensor technology and load/valves	Yes
Reverse polarity protection	yes
