SKU: 8112477

GTIN: 4052568589523

Все характеристики

Technical Data
Dimensions (W x L x H)	30.4 mm x 117.2 mm x 53.6 mm
Grid dimension	50.1
Type of mounting	Direct mounting via through-holeOn H-rail via accessoriesVia through-hole for M5 screwVia through-hole for M6 screw
Product weight	116
Mounting position	Any, on H-rail: horizontal
Ambient temperature	-2050
Note on ambient temperature	Observe ambient temperature derating according to IEC 61131-2:2017
Storage temperature	-2070
Relative air humidity	5 - 95%Non-condensing
Nominal altitude of use	<= 2000 m ASL (> 79.5 kPa)
Max. installation height	3500
Note on max. installation height	> 2000 m ASL (< 79.5 kPa)Observe ambient temperature derating according to IEC 61131-2:2017
Corrosion resistance class CRC	1 - Low corrosion stress
Vibration resistance	Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Note on vibration resistance	SG1 on H-railSG2 on direct mountingTransport application test with severity class 1 to FN 942017-4 and EN 60068-2-6
Shock resistance	Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on shock resistance	30 g/11 ms to EN 60068-2-27SG1 on H-railSG2 on direct mountingShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Protection class	III
Overvoltage category	II
LABS (PWIS) conformity	VDMA24364-B2-L
Note on materials	RoHS-compliantFree of halogenFree of phosphoric acid ester

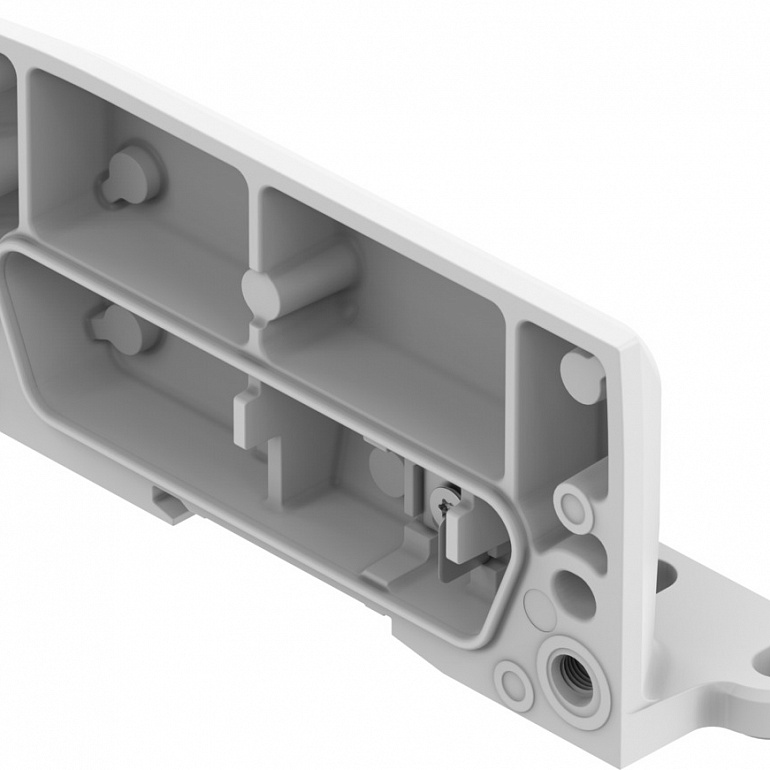

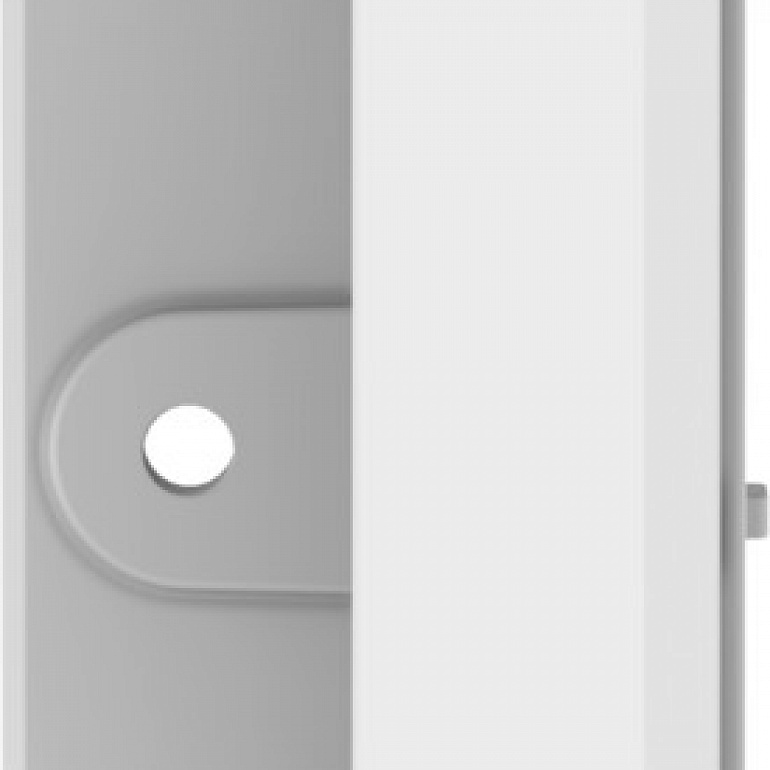

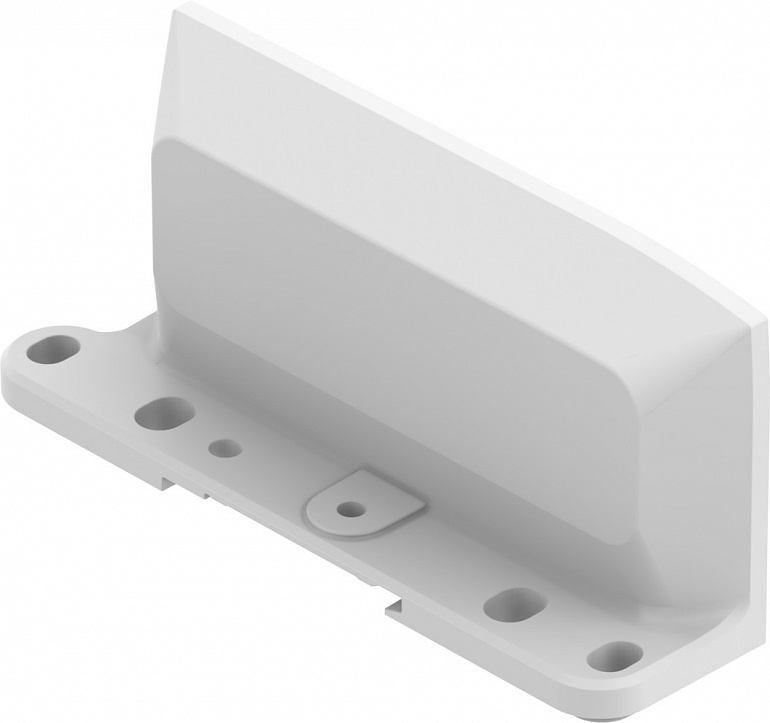

Material end plate	Die-cast aluminium, coated
Material screws	Nickel-plated steel
Material seals	PU foam
