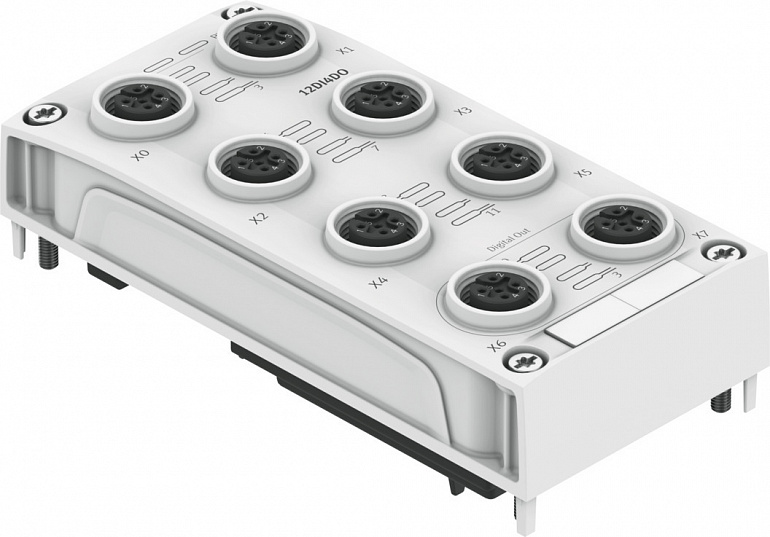

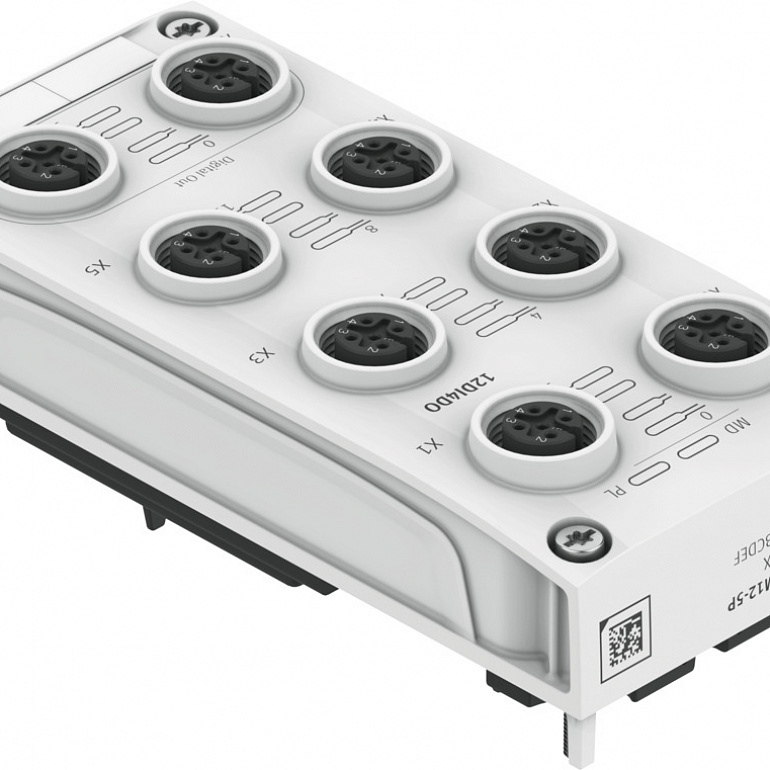

Technical Data
Dimensions (W x L x H)	50.1 mm x 107.3 mm x 57.5 mm
Grid dimension	50.1
Type of mounting	Screw-clamped
Product weight	98
Mounting position	optional
Ambient temperature	-2050
Note on ambient temperature	Observe ambient temperature derating according to IEC 61131-2:2017
Storage temperature	-2070
Relative air humidity	5 - 95%Non-condensing
Nominal altitude of use	<= 2000 m ASL (> 79.5 kPa)
Max. installation height	3500
Note on max. installation height	> 2000 m ASL (< 79.5 kPa)Observe ambient temperature derating according to IEC 61131-2:2017
Corrosion resistance class CRC	1 - Low corrosion stress
Vibration resistance	Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Note on vibration resistance	SG1 on H-railSG2 on direct mountingTransport application test with severity class 1 to FN 942017-4 and EN 60068-2-6
Shock resistance	Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on shock resistance	30 g/11 ms to EN 60068-2-27SG1 on H-railSG2 on direct mountingShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Protection class	III
Pollution degree	2
Overvoltage category	II
Max. cable length	30 m outputs30 m inputs
LABS (PWIS) conformity	VDMA24364-B2-L
Fire test material	UL94 V-0 (housing)
Note on materials	RoHS-compliantFree of halogenFree of phosphoric acid ester
Material cover	PBT-reinforced
Material screws	Nickel-plated steel
Material o-ring	FPM
Diagnostics via LED	(Outputs) Diagnostics per channelPower supply load (outputs)(Inputs-Outputs) Diagnostics per module(Inputs-Outputs) Status per channel
Diagnostics per internal communication	Load switch-offCommunication faultShort-circuit/overload in output signalShort circuit/overload in sensor supplyElectronics/sensors overvoltageLoad overvoltageElectronics/sensors undervoltageLoad undervoltage
Max. address volume, inputs	2
Max. address volume, outputs	1
Number of outputs	4
Module parameters	Configuration of voltage monitoring load supply PLBehaviour after short circuit/overload at the output
Channel parameters	Input debounce time
Communication interface, protocol	AP
Note regarding operating voltage	SELV/PELV fixed power supplies requiredNote voltage drop
Note on nominal operating voltage DC	Protected Extra-Low-Voltage to IEC 60204-1
Nominal operating voltage DC of load	24
Permissible voltage fluctuation of load	± 25 %
Nominal DC operating voltage, electronics/sensors	24
Permissible voltage fluctuations for electronics/sensors	± 25%
Intrinsic current consumption at nominal operating voltage for electronics/sensors	Typically 40 mA
Intrinsic current consumption at nominal operating voltage load	Typically 5 mA
Power failure bridging	10
Potential separation between the supply voltages electronics/sensor technology and load/valves	Yes
Reverse polarity protection	yes
Electrical connection input, function	Digital input

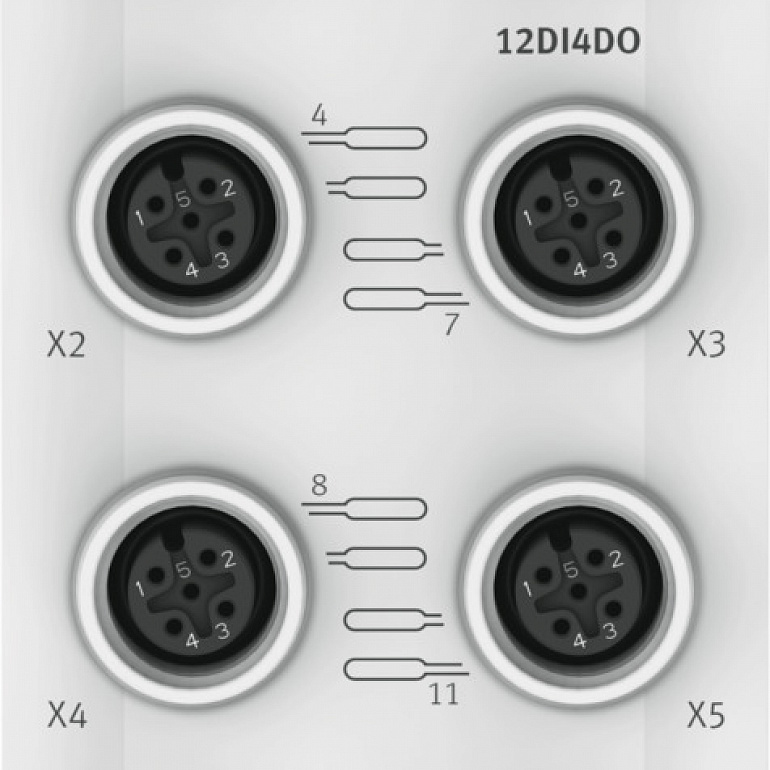

Electrical connection input, connection type	6 x socket
Electrical connection input, connector system	M12x1, A-coded to EN 61076-2-101
Electrical connection input, number of connections/cores	5
Electrical connection input, connection pattern	00995384
Number of inputs	12
Characteristic for inputs	To IEC 61131-2, type 3
Switching level	Signal 0: <= 5 VSignal 1: >= 11 V
Switching logic for inputs	PNP (positive switching)2-wire sensors to IEC 61131-23-wire sensors to IEC 61131-2
Input debounce time	0.1 ms3 ms (standard)10 ms20 ms
Behaviour after end of overload of the sensor supply	Automatic return
Fuse protection of inputs (short circuit)	Internal electronic fuse per module
Max. residual current of inputs per module	1.8
Electrical isolation of inputs between channels	no
Electrical isolation of inputs between channel - internal communication	yes
Electrical connection output, function	Digital output
Electrical connection output, connection type	2x socket
Electrical connection output, connector system	M12x1, A-coded to EN 61076-2-101
Electrical connection output, number of connections/cores	5
Electrical connection output, connection pattern	00995384
Characteristic for outputs	According to IEC 61131-2, type 0.5
Switching logic for outputs	PNP (positive switching)
Fuse protection of outputs (short circuit)	Internal electronic fuse per channel
Behaviour after end of overload of the outputs	No automatic return
Output delay with ohmic load	Signal change 0->1: < 200 µsSignal change 1->0: < 200 µs
Max. residual current outputs per module	2
Electrical isolation of outputs between channels	no
Electrical isolation of outputs between channel - internal communication	yes
Max. power supply per channel	0.5 A
