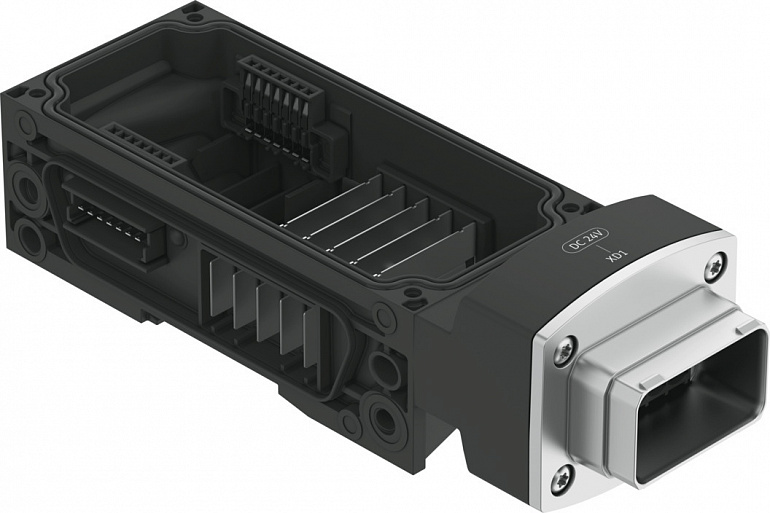

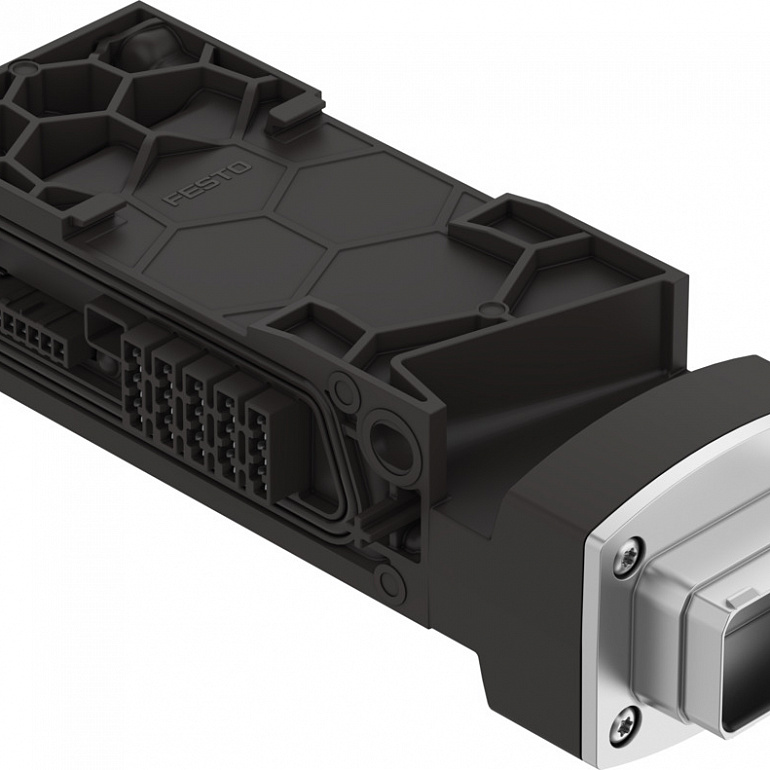

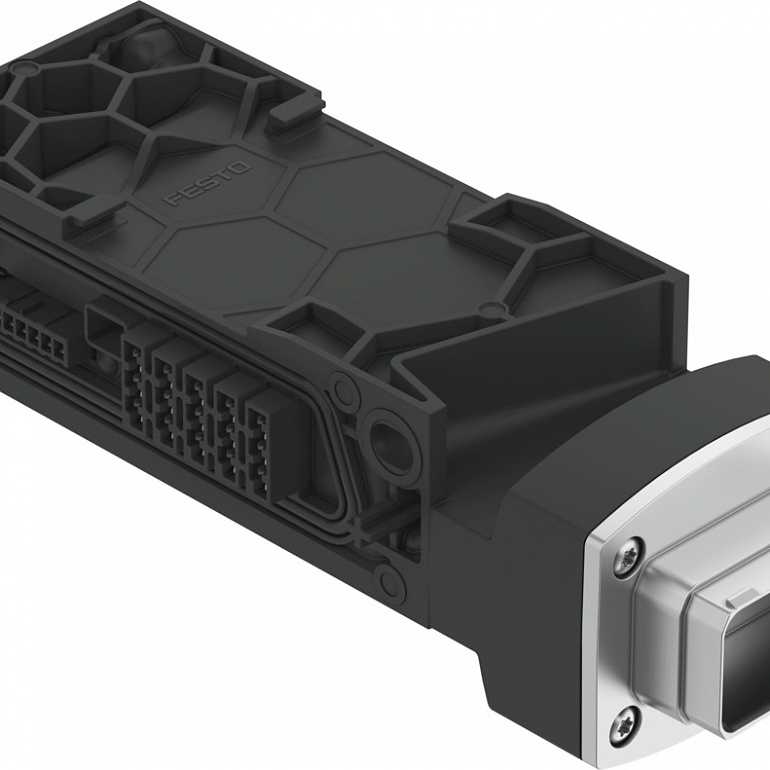

SKU: 8129257

GTIN: 4052568598983

Все характеристики

Technical Data
Dimensions (W x L x H)	50.1 mm x 153 mm x 45.6 mm
Grid dimension	50.1
Type of mounting	On H-rail via accessoriesWith through-hole for M5 screw with accessoriesWith through-hole for M6 screw with accessories
Product weight	177
Mounting position	Any, on H-rail: horizontal
Ambient temperature	-2050
Note on ambient temperature	Observe ambient temperature derating according to IEC 61131-2:2017
Storage temperature	-2070
Relative air humidity	5 - 95%Non-condensing
Nominal altitude of use	<= 2000 m ASL (> 79.5 kPa)
Max. installation height	3500
Note on max. installation height	> 2000 m ASL (< 79.5 kPa)Observe ambient temperature derating according to IEC 61131-2:2017
Corrosion resistance class CRC	1 - Low corrosion stress
Vibration resistance	Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Note on vibration resistance	SG1 on H-railSG2 on direct mountingTransport application test with severity class 1 to FN 942017-4 and EN 60068-2-6
Shock resistance	Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on shock resistance	30 g/11 ms to EN 60068-2-27SG1 on H-railSG2 on direct mountingShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Protection class	III
Overvoltage category	II
LABS (PWIS) conformity	VDMA24364-B2-L
Fire test material	UL94 V-0 (housing)
Note on materials	RoHS-compliantFree of halogenFree of phosphoric acid ester
Material housing	PA-reinforced
Material flange	Die-cast zinc, nickel-plated
Material screws	Nickel-plated steel
Material seals	PU foam
Power supply, function	Incoming electronics/sensors and load and functional earth
Power supply, connection type	Plugs
power supply, connection system	Push-pull to IEC 61076-3-126
Power supply, connection pattern	00997378
Power supply, number of pins/wires	5
Note regarding operating voltage	SELV/PELV fixed power supplies requiredNote voltage drop
Note on nominal operating voltage DC	24 V [XD-AR,PL]Protected Extra-Low-Voltage to IEC 60204-1
Nominal operating voltage DC of load	24
Nominal DC operating voltage, electronics/sensors	24
Power supply, conductor diameter	2.5
Nominal current	10
Max. power supply	10 A (external fuse required)
Potential separation between the supply voltages electronics/sensor technology and load/valves	Yes
