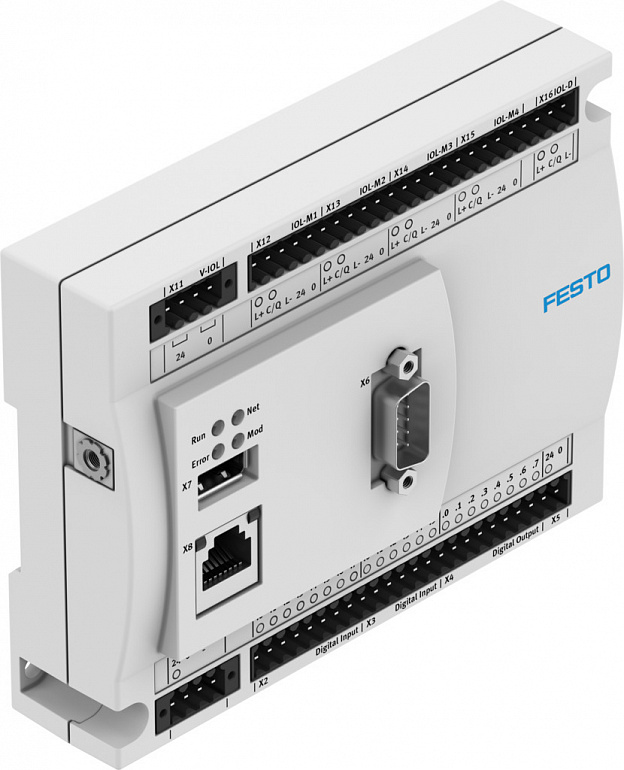

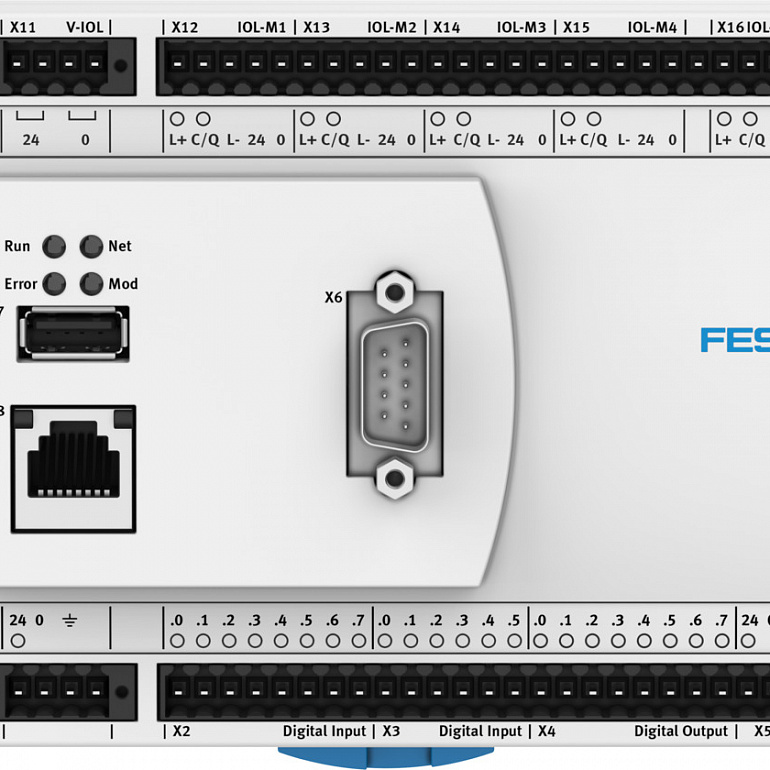

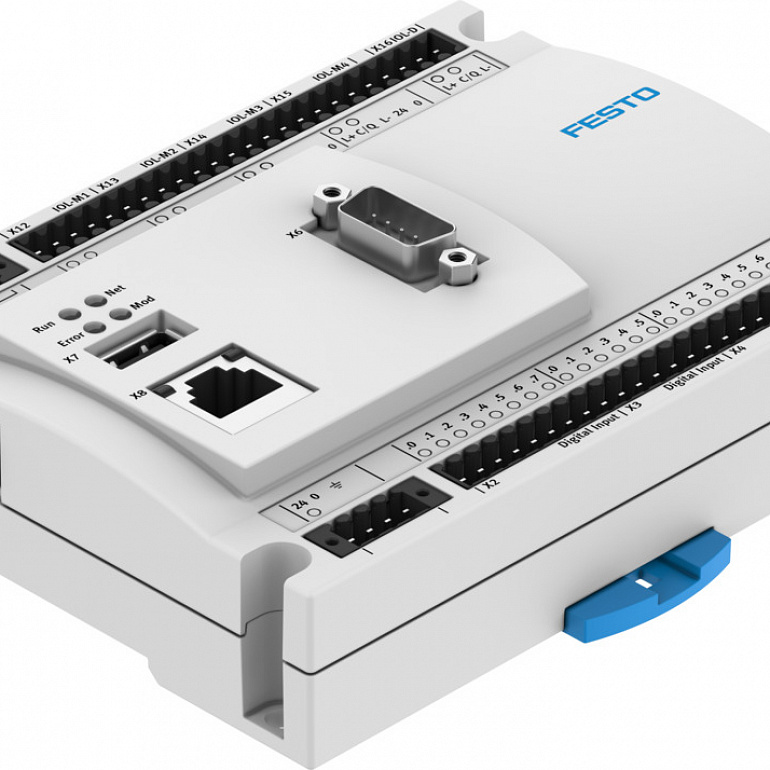

| Technical Data |
|
| Corrosion resistance class CRC |
0 - No corrosion stress |
| Approval |
RCM trademarkc UL us listed (OL) |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Note on materials |
RoHS-compliant |
| Nominal operating voltage DC |
24 |
| Operating voltage |
19.2 - 30 V DC |
| Current consumption |
120 mA |
| Max. power supply |
6 |
| Ambient temperature |
055 |
| Storage temperature |
-2570 |
| Relative air humidity |
95 %Non-condensing |
| Degree of protection |
IP20 |
| Protection class |
III |
| Product weight |
270 |
| Vibration resistance test |
As per EN 61131-2 |
| Shock resistance test |
As per EN 61131-2 |
| Electrical connection system I/Os |
Socket strip, detent 3.5 mm |
| Status displays |
LED |
| CPU data |
Dual core 500 MHz |
| Digital input, number |
12 |
| Digital inputs, switching logic |
Positive logic (PNP) |
| Digital inputs, high-speed counter inputs |
2, each with max. 180 kHz |
| Digital inputs, input signal delay |
Typically 3 ms |
| Digital inputs, input voltage/current |
24 V DC |
| Digital inputs, nominal value for TRUE |
>= 15 VDC |
| Digital inputs, nominal value for FALSE |
<= 5 VDC |
| Digital inputs, electrical isolation |
Yes, via optocoupler |
| Digital inputs, status display |
LED |
| Max. cable length |
30 m inputs |
| Digital outputs, number |
8 |
| Digital outputs, switching logic |
Positive logic (PNP) |
| Digital outputs, contact |
Transistor |
| Digital outputs, output voltage |
24 V DC |
| Digital outputs, output current |
500 mA |
| Digital outputs, electrical isolation |
Yes, via optocoupler |
| Digital outputs, switching frequency |
Max. 1 kHz |
| Digital outputs, short circuit current rating |
yes |
| Digital outputs, status display |
LED |
| Protocol |
CANopenI-PortIO-Link®Modbus® TCP |
| IO-Link, Protocol version |
Device V 1.0Master V 1.1 |
| IO-Link, communication mode |
Device COM1 (4.8 kB), COM2 (38.4 kB), COM3 (230.4 kB)Master SIO, COM1 (4.8 kB), COM2 (38.4 kB), COM3 (230.4 kB)Configurable via software |
| IO-Link, Port class |
Device AMaster B |
| IO-Link, Number of ports |
Device 1Master 4 |
| IO-Link, Process data length OUT |
Master parameterisable 2 - 32 bytes |
| IO-Link, Process data length IN |
Master parameterisable 2 - 32 bytes |
| IO-Link, Min. cycle time |
Device 3.2 msMaster 5 ms |
| IO-Link, Data storage provided |
2 kB/port |
| IO-Link, Output current |
3.5 A/port |
| IO-Link, connection technology |
Cage ClampPlugsMaster 5-pinDevice, 3-pin |
| IO-Link, communication |
C/Q green LEDC/Q red LED |
| IO-Link, ready-to-operate indicator |
L+ green LED onL+ green LED off |
| Fieldbus interface |
CAN bus |
| Field bus interface, connection system |
PlugsSub-D9-pin |
| Field bus interface, transmission rate |
125, 250, 500, 800, 1000 kbit/sCan be set using software |
| Field bus interface, electrical isolation |
yes |
| USB-interface |
USB 1.1 |
| Ethernet, plug connector |
RJ45 |
| Ethernet interface, protocol |
OPC UA |
| Ethernet, number |
1 |
| Ethernet, data transmission rate |
10/100 Mbit/s |
| Ethernet, supported protocols |
TCP/IP, EasyIP, Modbus TCP |
| Programming software |
CODESYS V3 |
| Programming language |
To IEC 61131-3KOPAWLSTFUPAS |
| CE mark (see declaration of conformity) |
To EU EMC Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Certificate issuing authority |
UL E239998-D1001 |
