SKU: 8155219

GTIN: 4052568587222

Все характеристики

Technical Data
Width	148
Mounting depth	17
Height	105
Length	34
Max. front panel thickness	17
Real-time clock	Yes
Supported PLC protocol	CoDeSys 3.XModbus RTU clientModbus RTU serverModbus TCP clientModbusTCP server
Deviation, real-time clock	< 100 ppm at 25 °C
Number of colours	16 M
Display	With backlighting
Display type	TFT colour
Display characteristics	Touchscreen
Display size	5"
Backup battery	Rechargeable lithium battery
Display resolution	800x480 pixels
Electrical power consumption	6
Approval	c UL us listed (OL)
CE mark (see declaration of conformity)	To EU EMC DirectiveIn accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)	To UK instructions for EMCTo UK RoHS instructions
LABS (PWIS) conformity	VDMA24364 zone III
Storage temperature	-3080
Relative air humidity	5 - 85 %Non-condensing
Degree of protection	IP67
Note on degree of protection	In assembled state
Ambient temperature	-2055
Note on ambient temperature	for vertical mounting
Product weight	500
Type of mounting	VESA interface
Note on materials	RoHS-compliant

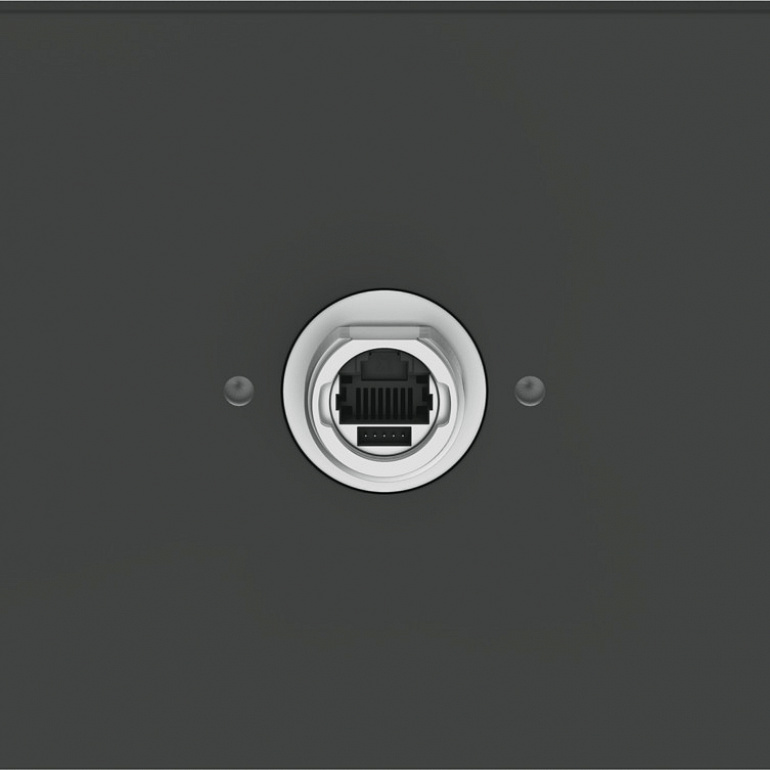

Ethernet interface, connection type	Socket
Ethernet interface, connection system	RJ45
Ethernet interface, number of pins/wires	8
Ethernet interface, transmission rate	10/100 Mbit/s
Ethernet interface, function	ProgrammingPower supply PoE
Ethernet interface, specification	IEEE 802.3 af/at
USB interface, function	File transfer
USB interface, type of connection	Socket
USB interface, connection technology	USB 2.0 type A
Programming software	Designer Studio
CPU data	1 GB RAM
Explosion protection certification outside the EU	Class I, Div. 2 (US)
Explosion protection	Class I, Div. 2 (US)
Certificate issuing authority	UL E239998UL E245518
