SKU: 8155217

GTIN: 4052568587208

Все характеристики

Technical Data
Width	282
Mounting depth	56
Height	197
Length	64
Max. front panel thickness	8
Real-time clock	Yes
Supported PLC protocol	CoDeSys 3.XModbus RTU clientModbus RTU serverModbus TCP clientModbusTCP server
Deviation, real-time clock	< 100 ppm at 25 °C
Number of colours	16 M
Display	With backlighting
Display type	TFT colour
Display characteristics	Touchscreen
Display size	10.1"
Backup battery	Rechargeable lithium battery
Operational voltage range DC	1032
Display resolution	1280x800 pixels
Nominal operating voltage DC	24
Current consumption at nominal operating voltage	1 A
Approval	c UL us listed (OL)
CE mark (see declaration of conformity)	To EU EMC DirectiveIn accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)	To UK instructions for EMCTo UK RoHS instructions
LABS (PWIS) conformity	VDMA24364 zone III
Storage temperature	-2070
Relative air humidity	5 - 85 %Non-condensing
Degree of protection	IP20IP66
Note on degree of protection	IP20 rearIP66 front
Ambient temperature	-2060
Note on ambient temperature	for vertical mounting
Product weight	1700
SD card slot	1
Additional functions	RS232 communication function
Type of mounting	Front panel mounting
Note on materials	RoHS-compliant

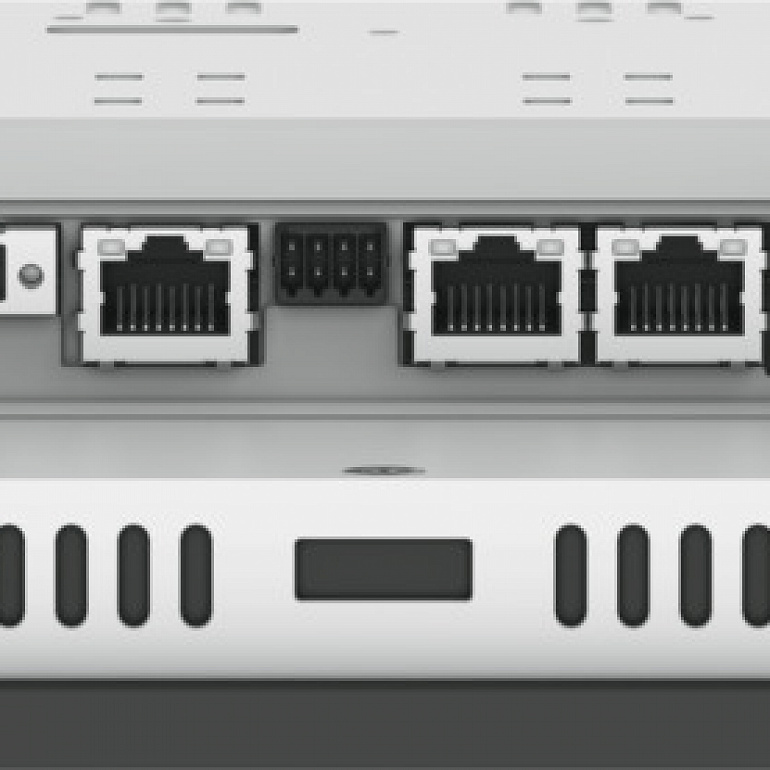

Ethernet interface, connection type	Socket
Ethernet interface, connection system	RJ45
Ethernet interface, number of pins/wires	8
Ethernet interface, transmission rate	10/100 Mbit/s1000 Mbps
Ethernet interface, function	Programming
Ethernet interface 2, type of connection	2x socket
Ethernet interface 2, connection technology	RJ45
Ethernet interface 2, number of pins/wires	8
Ethernet interface 2, transmission rate	10/100 Mbps
Ethernet interface 2, function	Programming
USB interface, function	File transfer
USB interface, type of connection	2 x socket
USB interface, connection technology	USB 2.0 type A
Programming software	Designer Studio
CPU data	1 GB RAM
