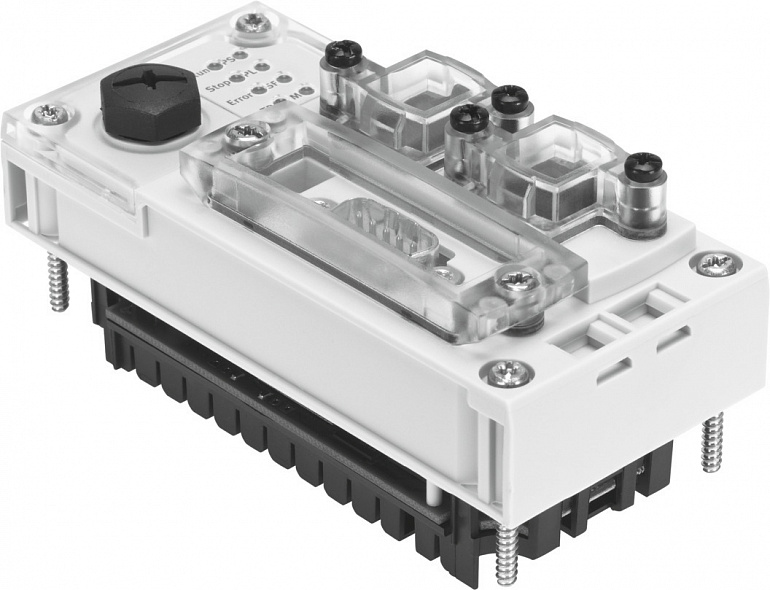

SKU: 3472765

GTIN: 4052568269760

Все характеристики

Technical Data
Protocol	CODESYS Level 2EasyIPModbus® TCPTCP/IP
Dimensions (W x L x H)	50 x 107 x 55 mm
Product weight	135
Ambient temperature	-550
Storage temperature	-2070
Relative air humidity	95 %Non-condensing
Degree of protection	IP65IP67
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L
Note on materials	RoHS-compliant
Material housing	PA-reinforcedPC
LED display, product-specific	ERR: PLC runtime errorM: Modify/forcing activePL: Load supplyPS: Electronics supply, sensor supplyRUN: PLC statusSF: System faultSTOP: PLC status
LED display, bus-specific	TP: Link/traffic
Device-specific diagnostics	Channel-oriented and module-oriented diagnosticsUndervoltage/short circuit of modulesDiagnostic memory
Operator controls	DIL switch for CAN terminationRotary switch for RUN/STOP
IP address setting	DHCPVia CODESYSVia MMI
Fieldbus interface	CAN bus
Field bus interface, connection system	PlugsSub-D9-pin
Field bus interface, electrical isolation	yes
Field bus interface, transmission rate	125, 250, 500, 800, 1000 kbit/sCan be set using software
Ethernet interface	RJ45 (socket, 8-pin)
Ethernet, number	1
Ethernet, supported protocols	TCP/IP, EasyIP, Modbus TCP
Ethernet, plug connector	RJ45Bushing8-pin
Ethernet, data transmission rate	10/100 Mbit/s
Parameterisation	CODESYS V3
Configuration support	CODESYS V3
Additional functions	Diagnostic functionsSoftMotion functions for electric drives
CPU data	256 MB RAM32 MB flash800 MHz processor
Control-Interface	CAN bus
Nominal operating voltage DC	24
Nominal DC operating voltage, load voltage	Without pneumatic components: 18 ... 30 V24 VWith pneumatics type midi/maxi: 21.6 ... 26.4 VWith pneumatics type CPA: 20.4 ... 26.4 VWith pneumatics type MPA: 18 ... 30 V
Intern power consumption nominal operating voltage	Typ. 85 mA
Power failure bridging	10
Programming, operating language	DE, EN
Programming language	To IEC 61131-3KOPAWLSTFUPASAdditionally CFC
Programming, support for file handling	yes
Programming software	CODESYS provided by Festo
Program memory	16 MB user program
Processing time	Approx. 200 µs/1 k instruction
Function modules	Read CPX module diagnosticsCPX diagnostic statusCopy CPX diagnostic traceAnd others
Flag	28 kB remanent dataCODESYS variable concept
Total number of axes	31
