| Technical Data |
|
| Indicating range |
187 |
| Symbol |
00991463 |
| Conforms to standard |
EN 837-1 |
| Nominal size of pressure gauge |
40 |
| Explosion protection |
The information in the certificate must be observed!Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Design |

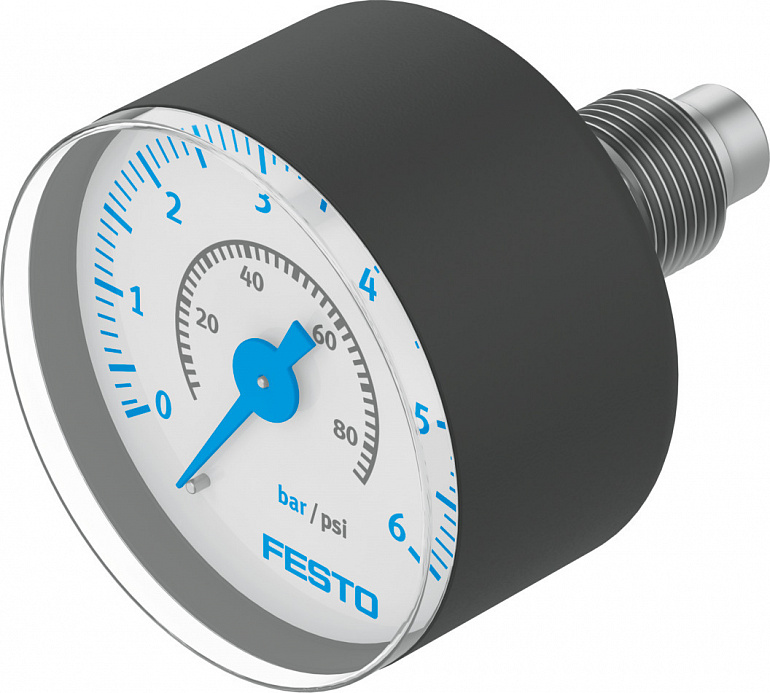

Bourdon tube pressure gauge |
| Type of mounting |
In-line installation |
| Operating medium |
Inert gasesNeutral fluids |
| Note on operating and pilot medium |
No acetyleneNo oxygen |
| Operating pressure |
087 |
| Alternating load factor |
0.66 |
| Measurement accuracy class |
2.5 |
| Degree of protection |
IP43 |
| Media temperature |
-2060 |
| Ambient temperature |
-2060 |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Note on materials |
RoHS-compliant |
| Position of connection |
Centred, rear side |
| Pneumatic connection |
R1/4 |
| Material in contact with the medium |
Brass |
| Material screwed plug |
Brass |
| Material housing |
ABS |
| Material screen |
PS |
| Housing colour |
Black |
| Product weight |
70 |
| Scale |
Double scaleBar (outside scale)psi (inner scale) |
