SKU: 540781
GTIN: 4052568016067
Характеристики
| Type of mounting | Via male thread |
| Operating pressure | 10 |
| Pneumatic connection | R1/8 |
| Measurement accuracy class | 4 |
Все характеристики
| Technical Data | |
| Symbol | 00991463 |
| Conforms to standard | EN 837-1 |
| Nominal size of pressure gauge | 27 |

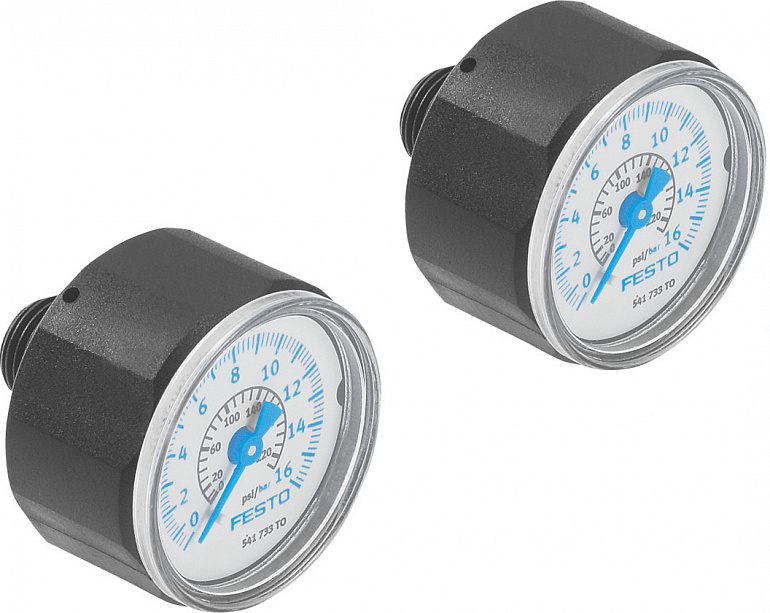

| Design | Bourdon tube pressure gauge |
| Type of mounting | Via male thread |
| Operating pressure | 10 |
| Measurement accuracy class | 4 |
| Degree of protection | IP43 |
| Ambient temperature | 560 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant |
| Mounting position | optional |
| Pneumatic connection | R1/8 |
| Product weight | 16 |
Приемущества
| For pressure booster DPA |
| For monitoring the supply and output pressure |
| Pneumatic connection via R or G thread |
Документы
| DPA_MA_EN.PDF |
| Datasheet |
