| Technical Data |
|
| Indicating range |
03.6 |
| Symbol |
00991463 |
| Conforms to standard |
EN 837-3 |

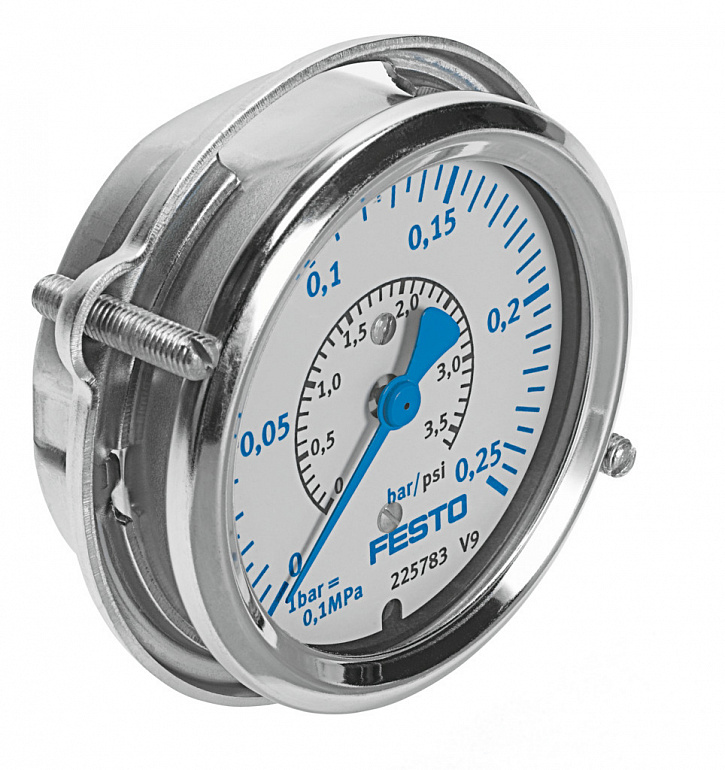

| Nominal size of pressure gauge |
63 |
| Explosion protection |
The information in the certificate must be observed!Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Type of mounting |
Front panel mounting |
| Operating medium |
Liquid mediaGaseous media |
| Note on operating and pilot medium |
No acetyleneNo oxygen |
| Operating pressure |
00.25 |
| Alternating load factor |
0.9 |
| Continuous load factor |
0.75 |
| Measurement accuracy class |
1.6 |
| Degree of protection |
IP43 |
| Media temperature |
-2080 |
| Ambient temperature |
-2060 |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Position of connection |
Centred, rear side |
| Pneumatic connection |
G1/4 |
| Material screwed plug |
Brass |
| Material housing |
Steel |
| Material screen |
PMMA |
| Material mounting ring |
Steel |
| Material screws |
Steel |
| Product weight |
120 |
