| Technical Data |
|
| Size |
Mini |
| Series |
D |
| Actuator lock |
Rotary knob with integrated lock |
| Mounting position |
Vertical +/-5° |
| Condensate drain |
Manually rotating |
| Design |

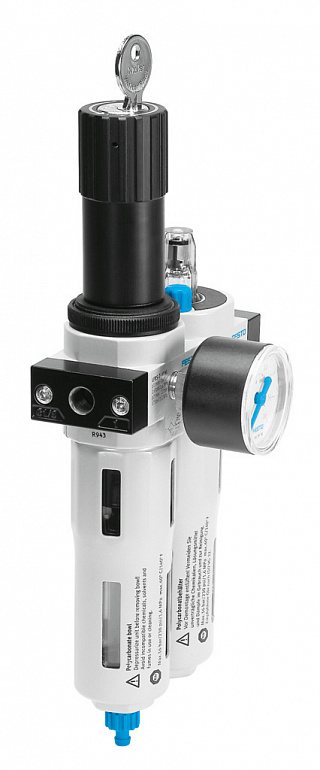

Filter regulator with pressure gaugeProportional standard mist lubricator |
| Max. condensate volume |
22 |
| Grade of filtration |
40 |
| Bowl guard |
Metal bowl guard |
| Symbol |
00991549 |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) |
With pressure gauge |
| Operating pressure |
116 |
| Pressure regulation range |
0.512 |
| Max. pressure hysteresis |
2.9 |
| Standard nominal flow rate (standardised to DIN 1343) |
1000 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [-:9:-]Inert gases |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Air purity class at output |
Compressed air to ISO 8573-1:2010 [7:8:-]Inert gases |
| Media temperature |
-1060 |
| Ambient temperature |
-1060 |
| Product weight |
760 |
| Type of mounting |
In-line installationWith accessories |
| Pneumatic connection, port 1 |
G1/4 |
| Pneumatic connection, port 2 |
G1/4 |
| Note on materials |
RoHS-compliant |
| Material housing |
Die-cast zinc |
| Material bowl |
PC |
