| Technical Data |
|
| Size |
Midi |
| Series |
D |
| Actuator lock |
Rotary knob with detent |
| Mounting position |
Vertical +/-5° |
| Grade of filtration |
40 |
| Condensate drain |
Fully automatic |

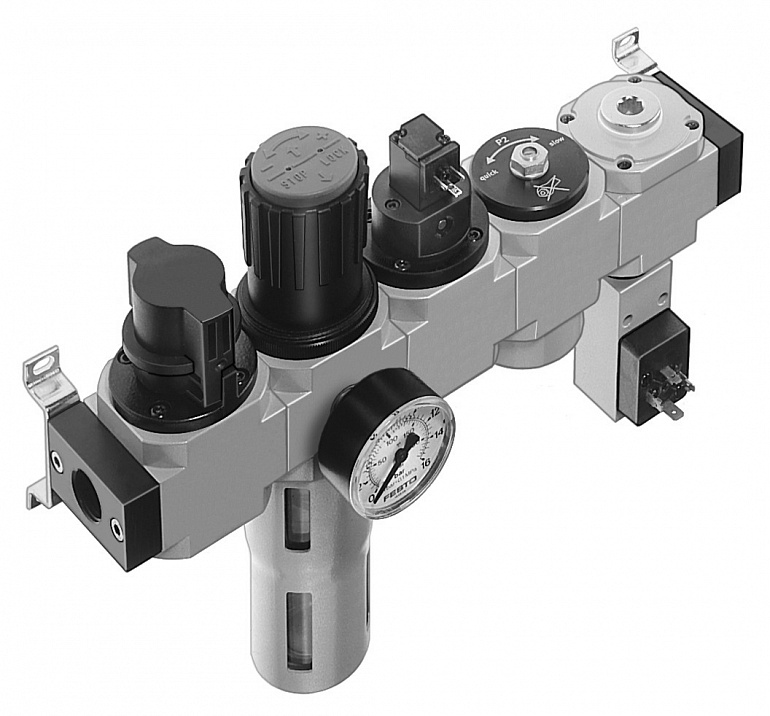

| Design |
Branching modulePressure switchOn/off valveFilter regulator with pressure gaugeSafety start-up valve |
| Max. condensate volume |
43 |
| Bowl guard |
Metal bowl guard |

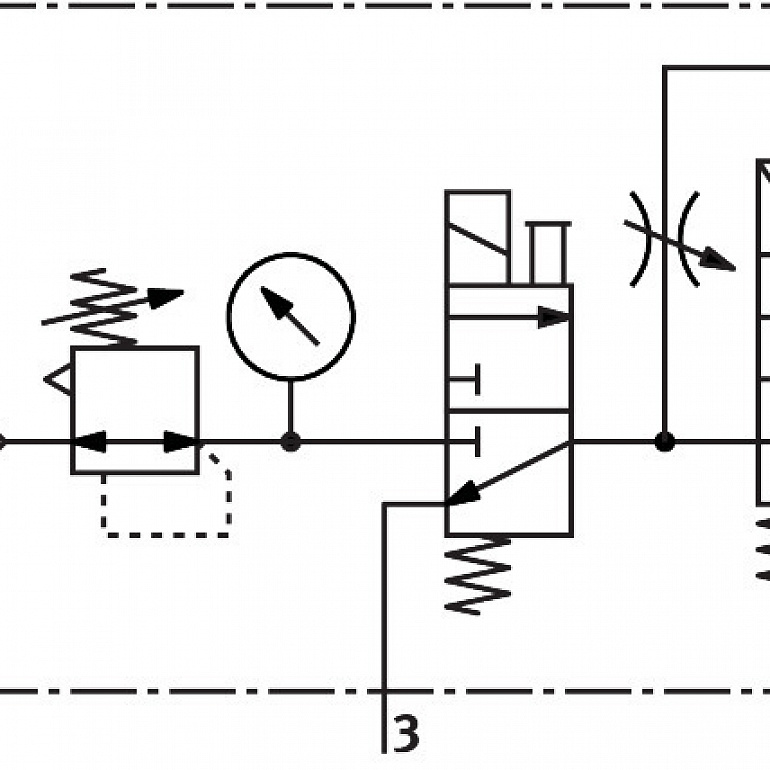

| Symbol |
00991527 |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) |
With pressure gauge |
| Operating pressure |
43.5174 |
| Pressure regulation range |
36.25174 |
| Max. pressure hysteresis |
2.9 |
| Standard nominal flow rate (standardised to DIN 1343) |
1680 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [-:-:-]Inert gases |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Air purity class at output |
Compressed air to ISO 8573-1:2010 [7:8:4]Inert gases |
| Media temperature |
-1060 |
| Ambient temperature |
-1060 |
| Product weight |
3400 |
| Type of mounting |
Either:In-line installationWith accessories |
| Pneumatic connection, port 1 |
G3/8 |
| Pneumatic connection, port 2 |
G3/8 |
| Material housing |
Die-cast zinc |
| Material bowl |
PC |
