SKU: 185842

GTIN: 4052568146009

Все характеристики

Technical Data
Size	Mini
Series	D
Actuator lock	Rotary knob with detent
Mounting position	Vertical +/-5°
Grade of filtration	40
Condensate drain	Fully automatic
Design	Branching modulePressure switchOn/off valveFilter regulator with pressure gaugeProportional standard mist lubricatorSafety start-up valve
Max. condensate volume	22
Bowl guard	Metal bowl guard

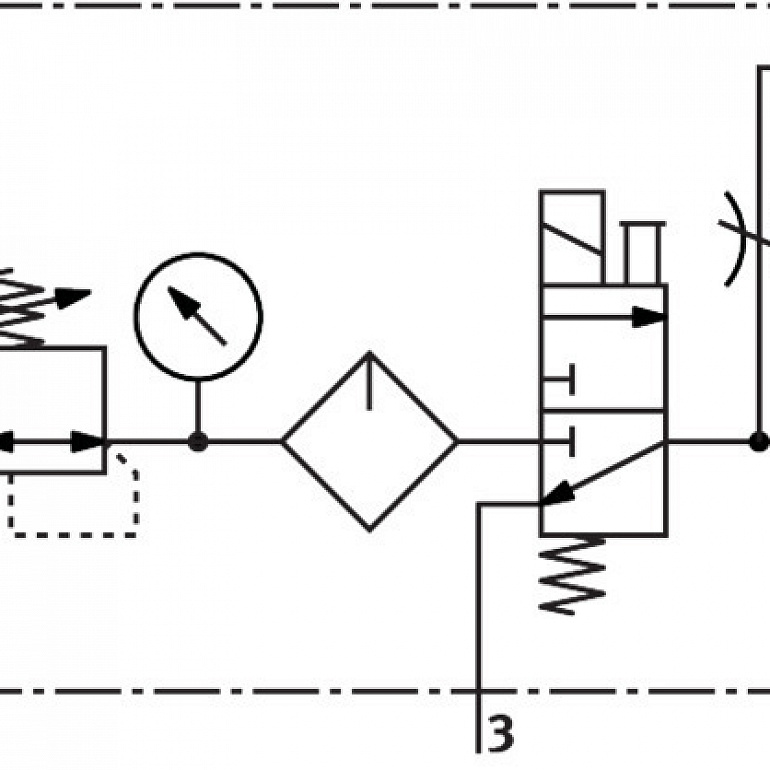

Symbol	00991565
Pressure gauge (ANALOG) or Pressure display (DIGITAL)	With pressure gauge
Operating pressure	43.5174
Pressure regulation range	36.25174
Max. pressure hysteresis	4.35
Standard nominal flow rate (standardised to DIN 1343)	620
Operating medium	Compressed air to ISO 8573-1:2010 [-:-:-]Inert gases
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Air purity class at output	Compressed air to ISO 8573-1:2010 [7:4:-]Inert gases
Media temperature	-1060
Ambient temperature	-1060
Product weight	1800
Type of mounting	Either:In-line installationWith accessories
Pneumatic connection, port 1	G1/4
Pneumatic connection, port 2	G1/4
Material housing	Die-cast zinc
Material bowl	PC
