| Technical Data |
|
| Design |

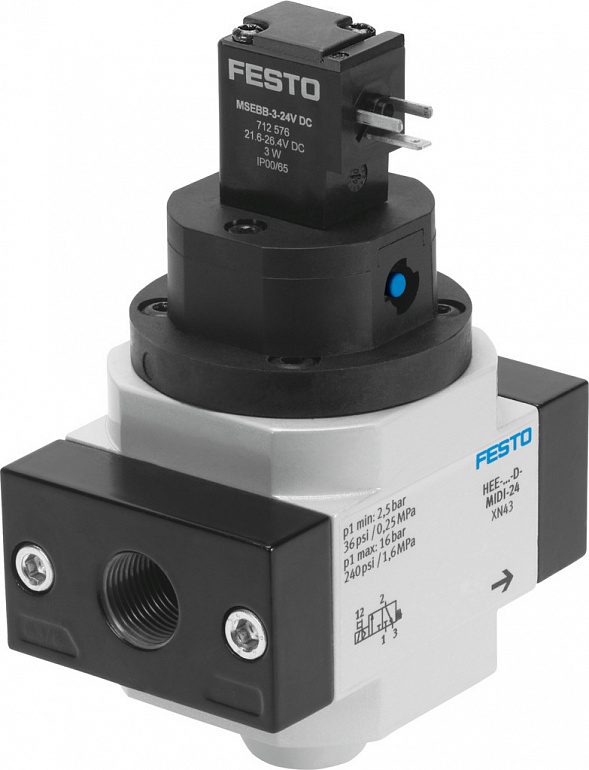

Piston gate valve |
| Type of actuation |
Electric |
| Sealing principle |
Soft |
| Exhaust-air function |
Without flow control option |
| Manual override |
Detenting |
| Type of reset |
Mechanical spring |
| Type of piloting |
Pilot actuated |
| Symbol |
00991008 |
| Valve function |
3/2-way, closed, monostable |
| Operating pressure |
2.516 |
| lap |
Overlap |
| C value |
17 |
| b value |
0.3 |
| Standard nominal flow rate (standardised to DIN 1343) |
3600 |
| Duty cycle |
100% |
| Characteristic coil data |
24 V DC: 2.5 W |
| Permissible voltage fluctuations |
+/- 10 % |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| Note on materials |
RoHS-compliant |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-1060 |
| Ambient temperature |
-1060 |
| Type of mounting |
In-line installationWith accessories |
| Mounting position |
optional |
| Flow direction |
Non-reversible |
| Product weight |
500 |
| Pneumatic connection, port 1 |
G1/2 |
| Pneumatic connection, port 2 |
G1/2 |
| Pneumatic connection, port 3 |
G1/4 |
| Air purity class at output |
Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases |
| Electrical connection |
Type CPlugsTo DIN EN 175301-803 |
| Signal status display |
With accessories |
| Material seals |
NBR |
| Material housing |
Die-cast aluminium |
