| Technical Data |
|
| Size |
Maxi |
| Series |
D |
| Mounting position |
Vertical +/-5° |
| Design |

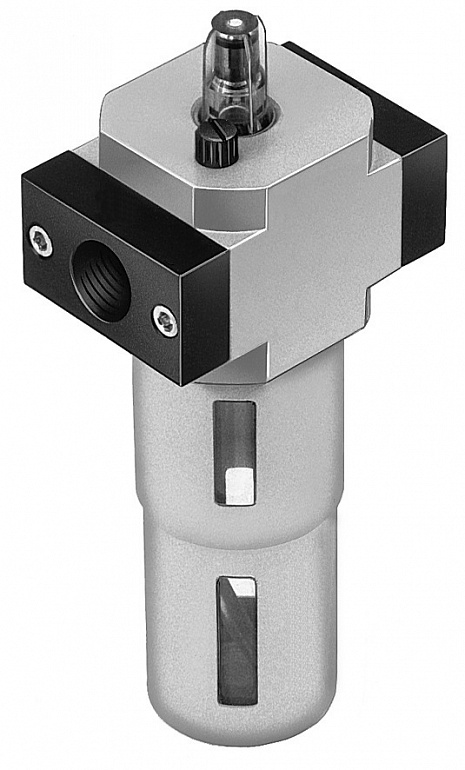

Proportional standard mist lubricator |
| Max. oil capacity |
190 |
| Bowl guard |
Metal bowl guard |
| Symbol |
00991532 |
| Operating pressure |
0232 |
| Min. flow rate for lubricator function |
10 |
| Standard nominal flow rate (standardised to DIN 1343) |
8300 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Storage temperature |
-1060 |
| Air purity class at output |
Compressed air to ISO 8573-1:2010 [7:4:-]Inert gases |
| Media temperature |
-1060 |
| Ambient temperature |
-1060 |
| Product weight |
1100 |
| Type of mounting |
With accessories |
| Pneumatic connection, port 1 |
G1/2 |
| Pneumatic connection, port 2 |
G1/2 |
| Note on materials |
RoHS-compliant |
| Material bowl |
PC |
