| Technical Data |
|
| Mounting position |
optional |
| Design |

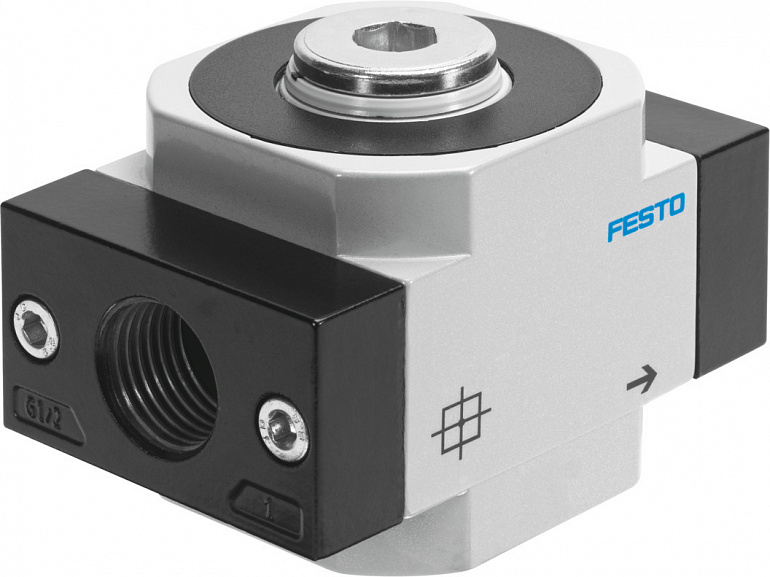

Branching module |
| Symbol |
00991510 |
| Operating pressure |
016 |
| Standard nominal flow rate in main flow direction 1->2 |
11700 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-]Inert gases |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Storage temperature |
-1060 |
| Air purity class at output |
Compressed air to ISO 8573-1:2010 [7:-:-]Inert gases |
| Media temperature |
-1060 |
| Ambient temperature |
-1060 |
| Product weight |
706 |
| Pneumatic connection, port 1 |
G1/2 |
| Pneumatic connection, port 2 |
G1/2 |
| Pneumatic connection, port 3 |
G3/4 |
| Pneumatic connection, port 4 |
G1/4 |
| Note on materials |
RoHS-compliant |
| Material housing |
Die-cast zinc |
