| Technical Data |
|
| Size |
9 |
| Series |
MS |
| Type of actuation |
ElectricManualPneumatic |
| Actuator lock |
Rotary knob with integrated lock |
| Mounting position |
optionalVertical +/-5° |
| Grade of filtration |
0.0140 |
| Condensate drain |
Fully automaticManually rotatingSemi-automatic |

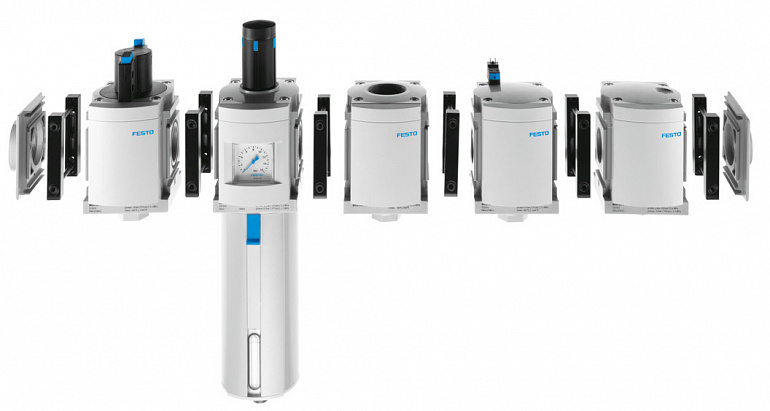

| Design |
Branching moduleActivated carbon filterPressure regulator with pressure gaugeSoft-start/quick exhaust valveOn/off valveFibre filterFilter regulator with pressure gaugeFilter regulator without pressure gaugeProportional standard mist lubricatorSintered fil |
| Max. condensate volume |
220 |
| Max. oil capacity |
490 |
| Controller function |
Output pressure constantVia primary pressure compensationWith secondary ventingWith return flow function |
| Bowl guard |
Integrated as metal bowl |
| Differential pressure display |
Visual displayVia pressure sensor |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) |
Via pressure sensorWith pressure gauge |
| Operating pressure |
0290 |
| Pressure regulation range |
14.5232 |
| Standard nominal flow rate (standardised to DIN 1343) |
140018000 |
| Characteristic coil data |
110 V AC: 50/60 Hz, pick-up power 11.5 VA, holding power 8.9 VA230 V AC: 50/60 Hz, pick-up power 11.5 VA, holding power 9.1 VA24 V DC: 4.5 W24 V DC: 8.4 W |
| Approval |
c UL us - Recognized (OL) |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveTo EU Explosion Protection Directive (ATEX)To EC Machinery DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK EX instructionsTo UK regulations for machinesTo UK RoHS instructionsTo UK regulations for electrical equipment |
| Explosion protection certification outside the EU |
EPL Db (GB)EPL Dc (GB)EPL Gb (GB)EPL Gc (GB) |
| Explosion protection |
Zone 1 (ATEX)Zone 1 (UKEX)Zone 2 (ATEX)Zone 2 (UKEX)Zone 21 (ATEX)Zone 21 (UKEX)Zone 22 (ATEX)Zone 22 (UKEX) |
| ATEX category gas |
II 2GII 3G |
| ATEX category dust |
II 2DII 3D |
| Explosion ignition protection type for gas |
Ex h IIC T6 Gb X |
| Explosion ignition protection type for dust |
Ex h IIIC T60°C Db X |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Storage temperature |
-1060 |
| Media temperature |
-1060 |
| Ambient temperature |
-1060 |
| Type of mounting |
With accessories |
| Pneumatic connection, port 1 |
G1/2G3/4G1G1 1/4G1 1/21/2 NPT3/4 NPT1 NPT1 1/4 NPT1 1/2 NPT |
| Pneumatic connection, port 2 |
G1/2G3/4G1G1 1/4G1 1/21/2 NPT3/4 NPT1 NPT1 1/4 NPT1 1/2 NPT |
| Pneumatic connection, port 3 |
G11 NPT |
| Material seals |
NBR |
| Material housing |
Die-cast aluminium |
| Material bowl |
Wrought aluminium alloy |
