| Technical Data |
|
| Size |
4 |
| Series |
MS |
| Actuator lock |
Rotary knob with detentcan be closed with accessories |
| Mounting position |
Vertical +/-5° |
| Grade of filtration |
40 |
| Condensate drain |
Manually rotating |
| Design |
Branching moduleOn/off valveFilter regulator with pressure gaugeStandard mist lubricator |
| Controller function |
Output pressure constantVia primary pressure compensationWith secondary ventingWith return flow function |
| Bowl guard |
Plastic bowl guard |

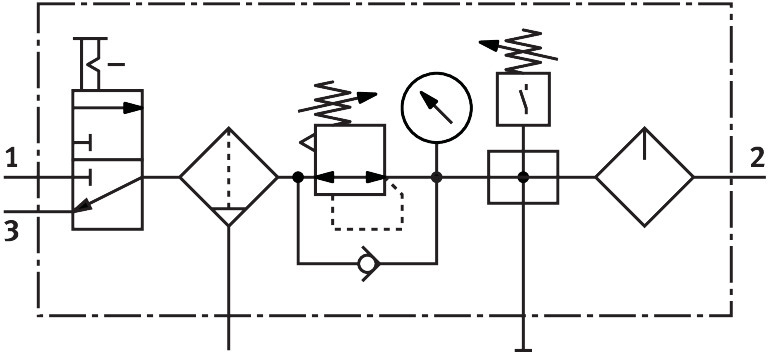

| Symbol |
00991597 |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) |
With pressure gauge |
| Operating pressure |
1.514 |
| Pressure regulation range |
112 |
| Standard nominal flow rate (standardised to DIN 1343) |
950 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Storage temperature |
-1060 |
| Suitable for use with food |
See supplementary material information |
| Air purity class at output |
Compressed air to ISO 8573-1:2010 [7:4:-] |
| Media temperature |
-1060 |
| Ambient temperature |
-1060 |
| Product weight |
1700 |
| Type of mounting |
With accessories |
| Pneumatic connection, port 1 |
G1/4 |
| Pneumatic connection, port 2 |
G1/4 |
| Pneumatic connection, port 3 |
G1/4 |
| Material housing |
Die-cast aluminium |
| Material bowl |
PC |
