| Technical Data |
|
| Size |
6 |
| Series |
MS |
| Mounting position |
Vertical +/-5° |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) |

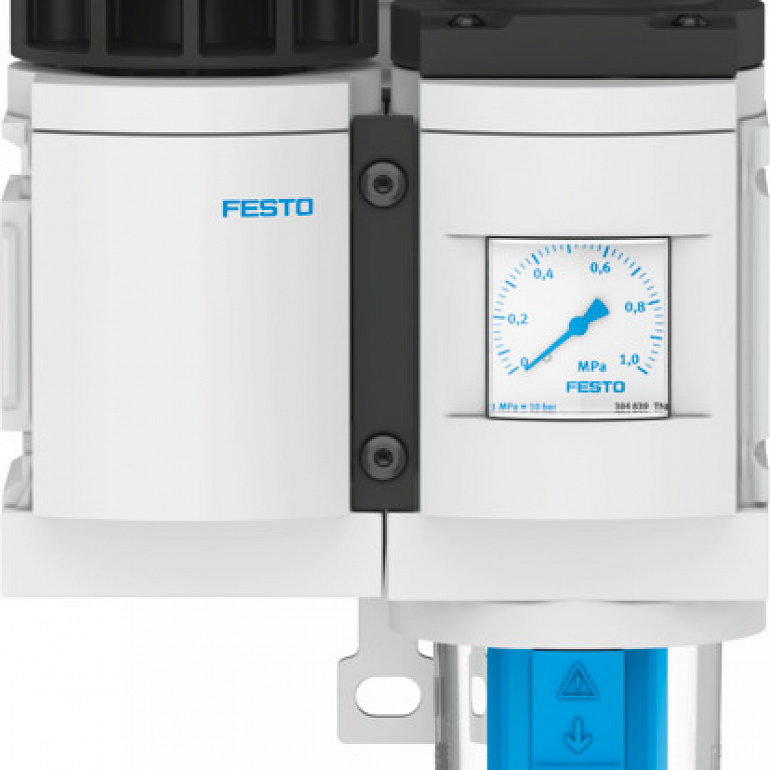

With pressure gauge |
| Operating pressure |
14.5145 |
| Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi) |
3600 |
| Standard nominal flow rate (standardised to DIN 1343) |
4750 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Compatibility with ester oil not guaranteed |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Storage temperature |
-550 |
| Media temperature |
550 |
| Ambient temperature |
550 |
| Product weight |
1250 |
| Type of mounting |
Either:In-line installationVia mounting bracketWith accessories |
| Note on materials |
RoHS-compliant |
