| Technical Data |
|
| Piston diameter |
63 mm |
| Mounting position |
optional |
| Design |

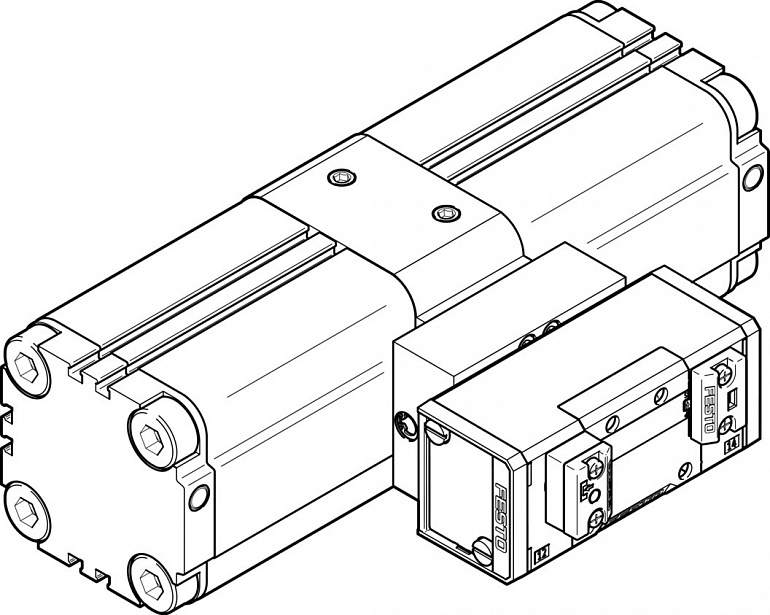

Twin-piston pressure booster |
| Symbol |
00992008 |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) |
Prepared for G1/8 |
| Output pressure 2 |
58232 |
| Operating pressure |
29116 |
| Pressure regulation range |
58232 |
| Inlet pressure 1 |
29116 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:3:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Storage temperature |
560 |
| Ambient temperature |
560 |
| Product weight |
6000 |
| Type of mounting |
Via female thread |
| Pneumatic connection, port 1 |
G3/8 |
| Pneumatic connection, port 2 |
G3/8 |
| Pneumatic connection, port 3 |
G3/8 |
| Note on materials |
RoHS-compliant |
