| Technical Data |
|
| Piston diameter |
40 mm |
| Volume |
5 l |
| Mounting position |
Condensate drain underneath |
| Design |

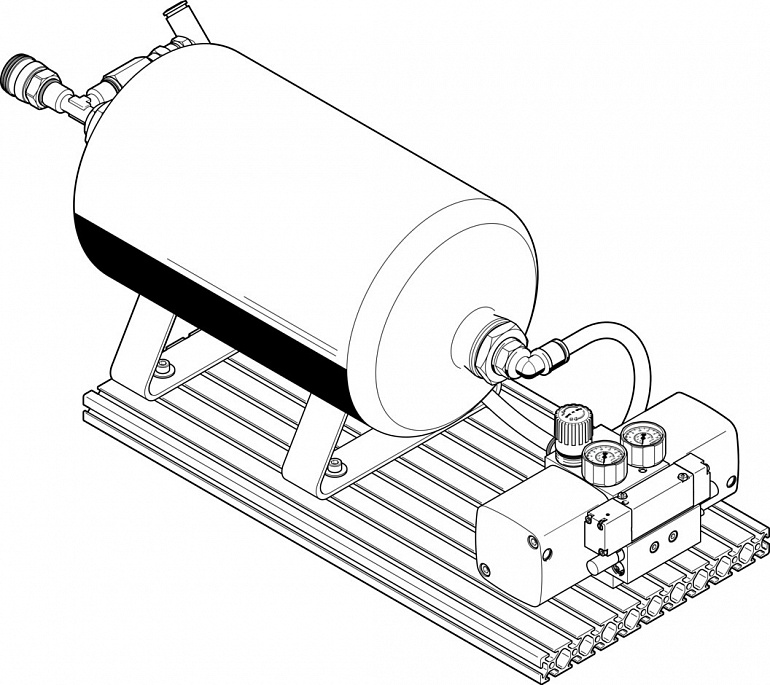

Twin-piston pressure boosterWith air reservoirVia pressure gaugeWith check valve |
| Symbol |
00991432 |
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) |
With pressure gauge |
| Output pressure 2 |
65.25145 |
| Operating pressure |
36.25116 |
| Pressure regulation range |
65.25145 |
| Inlet pressure 1 |
29116 |
| CE mark (see declaration of conformity) |
In accordance with EU Pressure Equipment Directive |
| UKCA marking (see declaration of conformity) |
to UK Pressure Equipment Regulations |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:3:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Storage temperature |
560 |
| Ambient temperature |
560 |
| Max. tightening torque for condensate drain |
27 |
| Product weight |
7300 |
| Type of mounting |
Via slot nuts |
| Pneumatic connection, port 1 |
QS-10 |
| Pneumatic connection, port 2 |
KD4 |
| Pneumatic connection, port 3 |
Silencer |
| Note on materials |
RoHS-compliant |
| Material air reservoir |
High-alloy stainless steel |
